User's Manual

©2016 ZIH Corp. All rights reserved. Zebra and the stylized Zebra head are trademarks of ZIH Corp., registered in many jurisdictions worldwide. All other
trademarks are the property of their respective owners.
Air Protocol
EPCglobal UHF Class 1 Gen2,
ISO 18000-6C
Receiver Sensitivity
-82 dBm
IP Addressing
Static and Dynamic
Host Interface Protocol
LLRP v1.0.1
API Support
Host Applications – .NET, C
and Java EMDK;
Embedded Applications – C &
Java SDK
5 Integration Guidelines
5.1 Mounting
The 21-199765-01 is to be mounted using a bracket that latches on to the latch on the back of the 21-
199765-01 Module. There is no requirement for screws or heat sinking once the bracket is installed
onto the final product. The module will slide on and latch into the bracket. Details of the bracket are
available upon request.

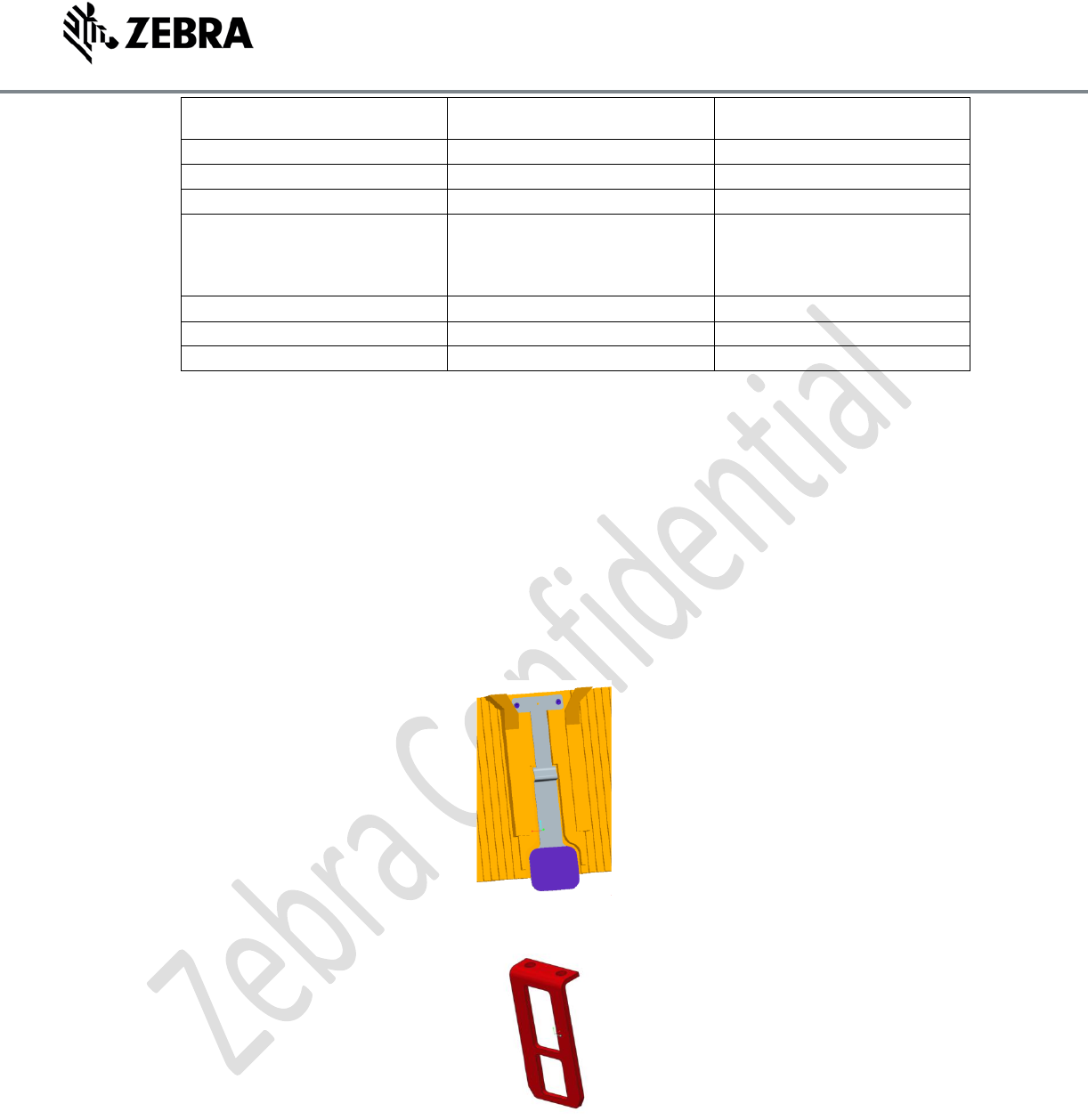

Figure 2 Rear Latch on 21-199765-01
Figure 3 Bracket used to mount 21-199765-01
5.2 Electrical Connection
The electrical connections on the 21-199765-01 are the Ethernet connection, the optional DC power
connection, and the 8-Port Antenna connection.
