STAIRCASE LIGHTING TIMERy ASP-02 INSTRUCTION MANUAL
Zakład Mechaniki i Elektroniki
ZAMEL sp.j.
J.W. Dzida, K. Łodzińska
ul. Zielona 27, 43-200 Pszczyna, Poland
Tel. [phone], Fax [phone]
www.zamelcet.com, e-mail: [e-mail]
VER. 002_12.12.2008

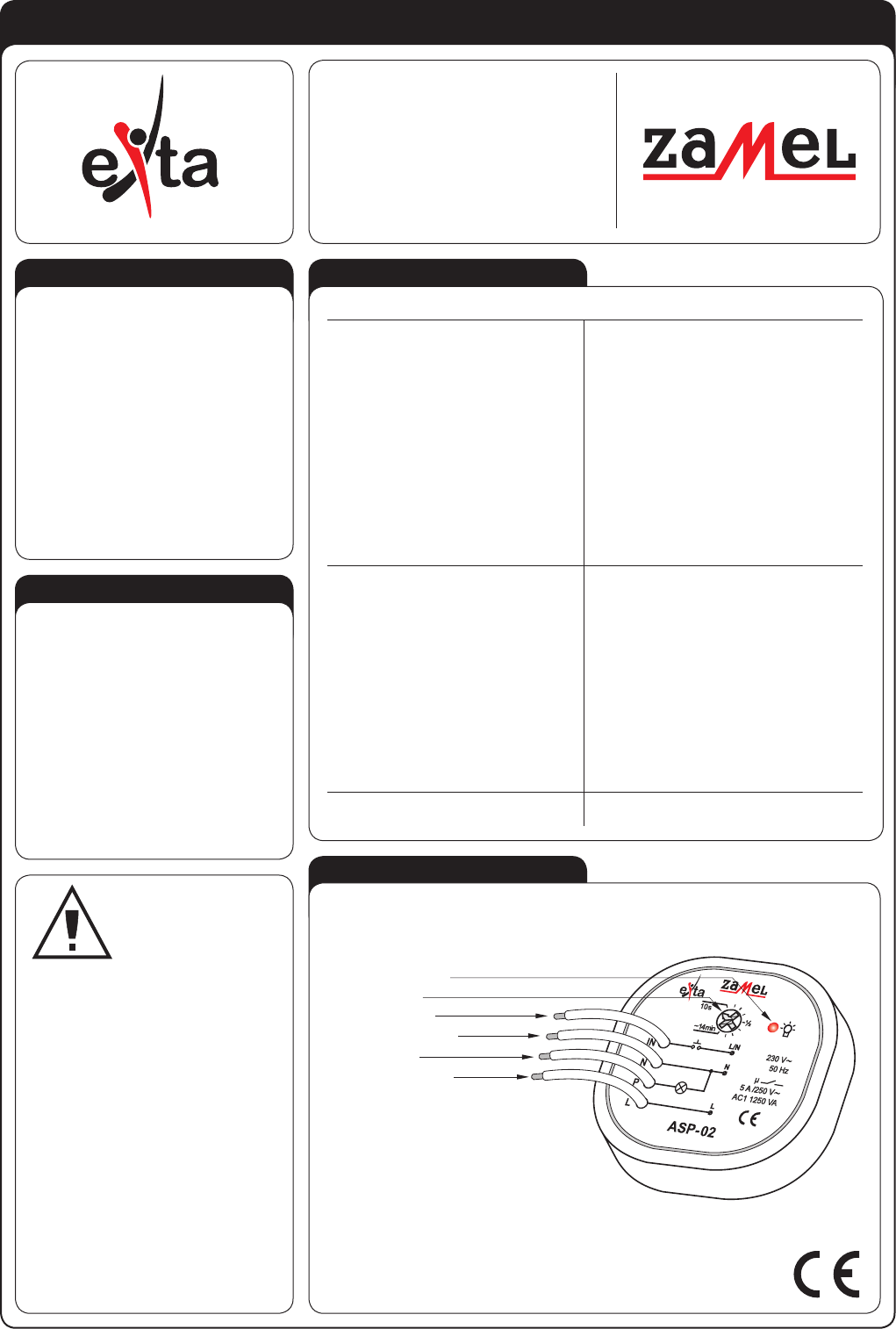

APPERANCE
FEATURES
DESCRIPTION
ی Staircase lighting control,
ی Continuous ON-time adjustment of 10
seconds to 14 minutes,
ی Relay state indicator – red LED,
ی Device triggering by means of the L or
N wire,
ی Applicable together with the single
pole push buttons, illuminated,
ی Easy applicable together with any exi-
sting electrical system,
ی Counter-interlock function,
ی Relay voltage output, maximum load
5 A.
The ASP-02 staircase timer is desi-
gned for corridor and staircase lighting
control. After the circuit triggering the
timer keeps the light ON for the preset
time and then switches it OFF. It has an
adjustable ON-time setting of 10 seconds
to 14 minutes. ON-time may be adjusted
by means of a potentiometer. The timer is
fitted with a counter-interlock circuit. The
ASP-02 staircase timer may by applied
as a time relay for delayed switch-OFF.
It is possible to mount the device under a
push button, in a deep junction box of 60
mm diameter.
The device should be
connected to a sin-
glephase system ac-
cordingly to current
standards. The device
connection swill be de-
scribed in this manual.
Only qualied electricians are allowed
to connect, assembly and adjust the ti-
mer. It is necessar y to read this manual
before the timer mounting. Do not di-
sassembly the timer casing or you will
lose any warranty rights and expose
yourself to the electric shock hazard.
Before mounting operation make sure
of disconnecting the connection wires
from the electric network. Use a cross-
head screwdriver of 3.5 mm diameter
to mount the device. The timer should
be carried, stored and used in an ap-
propriate way. Do not mount the timer
in case of any device parts lack, dama-
ge or deformation. In case of malfunc-
tion please notify the manufacturer.
CAUTION
TECHNICAL DATA
ASP-02
Power supply cables: L(black), N(blue)
Input rated voltage: 230 V~
Input voltage tolerance: from -15 to +10 %
Nominal frequency: 50 / 60 Hz
Rated power consumption: 10,5 mA
Release cable: IN (red)
Output cable: (P) brown
Time adjustment range: from 10 s to 14 min
Time accuracy adjustment: ±10 %
Time repeatability adjustment: ±5 %
Time adjustment: continuous (rotational potentiometer)
Load supply indicator: red LED
Control: relay 5 A / 250 V AC1 1250VA
Number of switch cables: 4
Section of connecting cables: 1 mm
2
Connecting cable length: 10 cm
Ambient temperature range: from -20 to +45
o
C
Operating position: free
Mounting: for 60 mm junction box
Protection degree: IP20
Protective class: II
Overvoltage category: II
Pollution degree: 2
Dimensions: 50 x 50 x 15 mm
Weight: 28 g
Reference standards: PN-EN 60669-1; PN-EN 60669-2-1
PN-EN 61000-4-2,3,4,5,6,11
Load supply indicator
Time adjustment
Output cable (P)
Power supply cable (L)
Release cable (IN)
Power supply cable (N)
b
r
o
w
n
r
e
d
b
l
a
c
k
b
l
u
e
