ZALMAN SPECIFICATION PAGE: 4/9
MODEL NO: TNN350APF-V1 REV.0
PS_ON
PS_OFF
* PW-OK sense level : 95% of nominal
2.3.1 REMOTE ON/OFF CONTROL
DATE: 2005. 1. 17
2.3.2 POWER UP DELAY
. When PS-ON is pulled to TTL low, the DC outputs are to be enabled.
. When PS-ON is pulled to TTL high or open circuited, the DC outputs are
to be disabled. Turn ON/OFF delay >- 1000ms
The power supply DC outputs (with the exception of +5VSB) shall be enabled with
AC power is present.
an active-low, TTL-compatible signal("PS-ON"). The +5VSB is on whenever the
DC Enable
95%
10%
T4

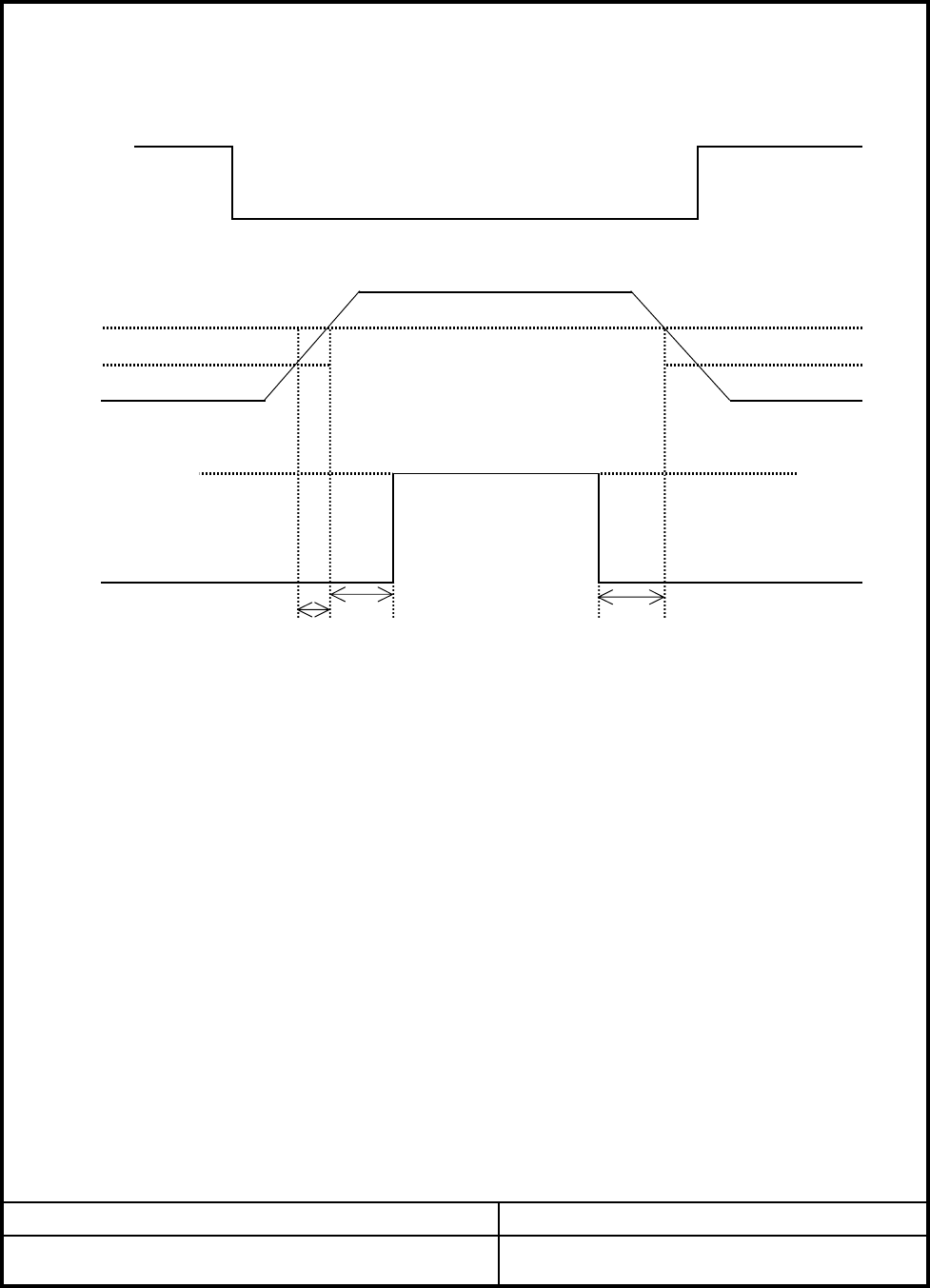

2.3 TIMING / HOUSE KEEPING
PWR-OK
The output voltages shall rise from <10% of nominal to within the regulation ranges
specified in sec 2.2.1 within 5 to 70ms.
