Pole Mounting

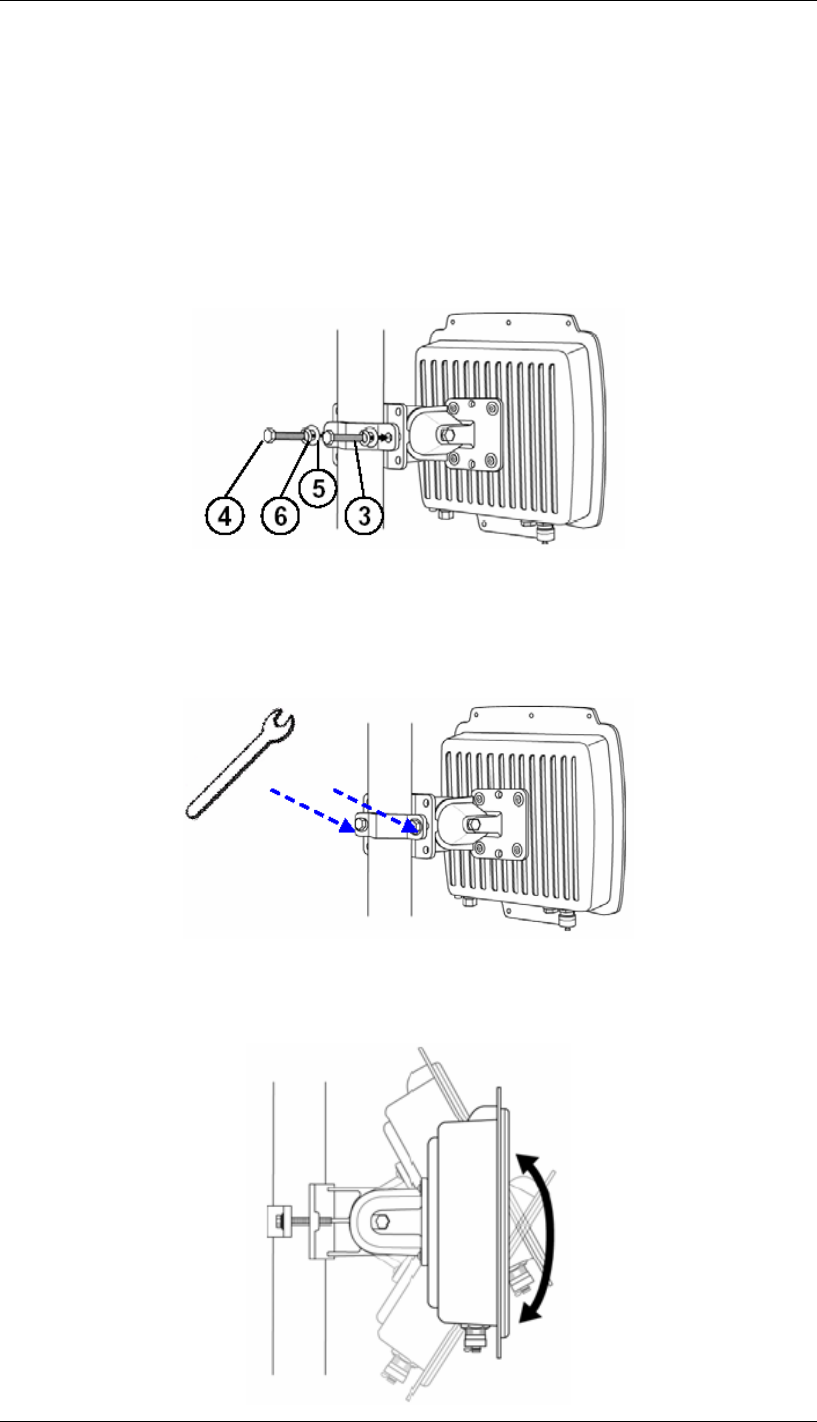

1. Install the main bracket and the pole mount bar ③ over the top of the pole by
securing the drill holes of the pole mount bar to the main bracket ones and insert two
M8×80 ④ screws, spring washers ⑥ and washers ⑤ through the drill holes and
main bracket;
2. Fasten two M8×80 screws ④ and washers ⑤ through the drill holes and main
bracket with a spanner;
3. Adjust the antenna for appropriate tilt / vertical orientation.
