Chapter 3 System Installation

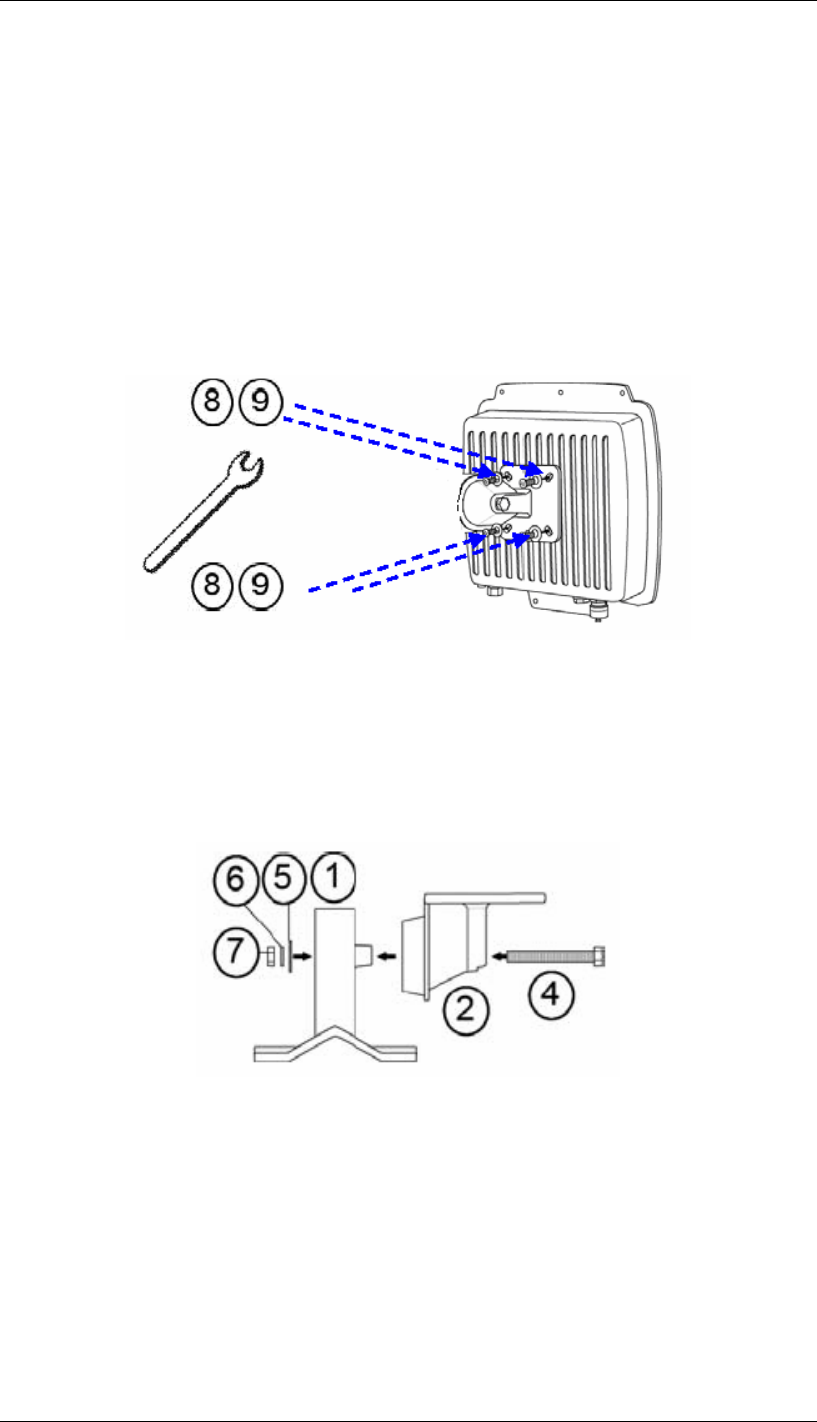

Assemble the Mounting Bracket
1. Place the main bracket into the seating and use a spanner to fasten the bracket to the R1
Extender with M5×16 screws ⑧ and M5 washers ⑨ provided in the hardware packets;
2. Assemble the main bracket by placing articulation pole ② to the T-form bracket ① via a
M8×90 ④ screw through the insertion axe and fix with the M8 washer ⑤ , spring
washer ⑥ and M8 nut⑦;
