Node (Graph) Window

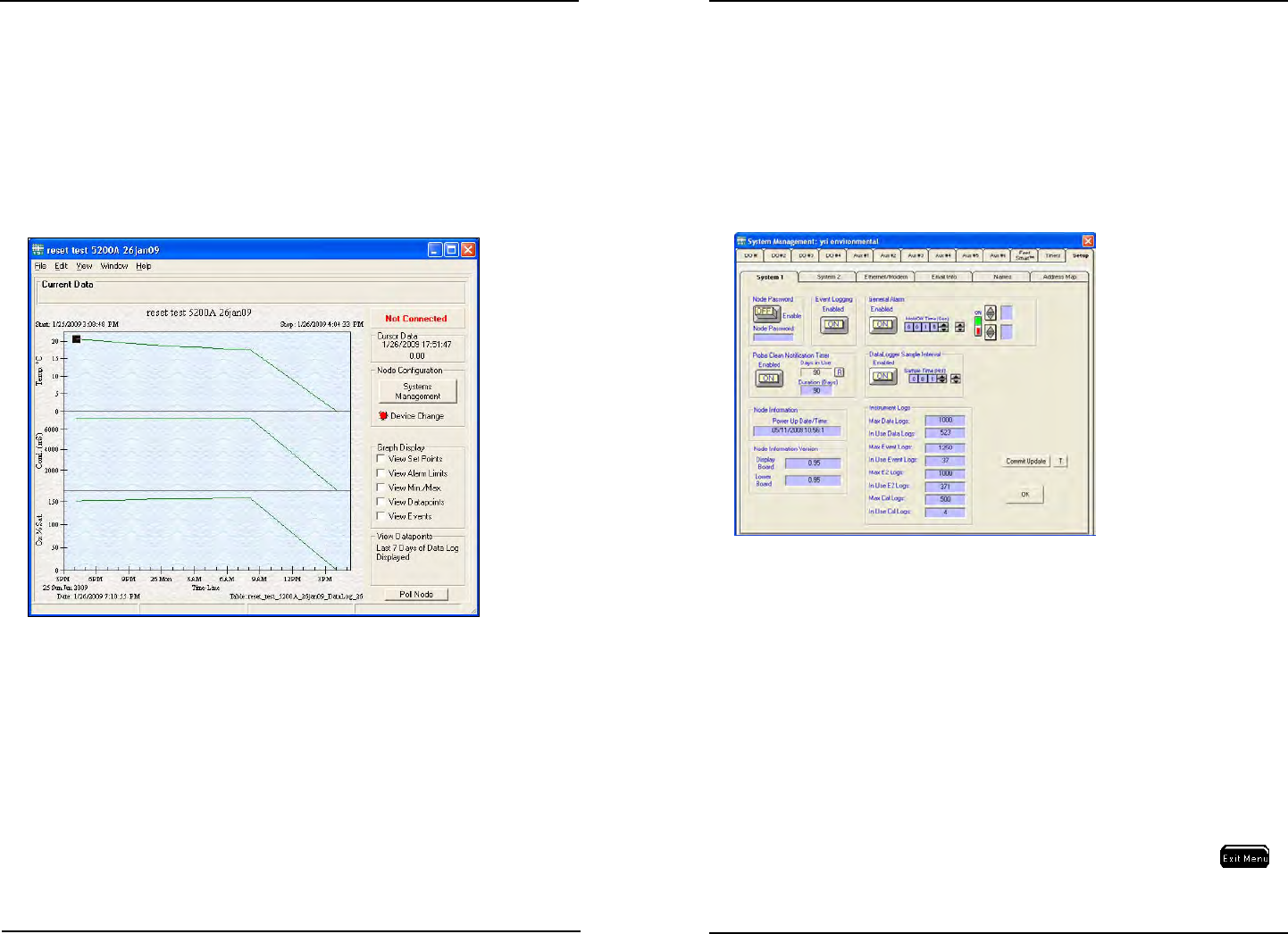

Double click on a node in tree at the Explorer Screen to open a Node window. A
graph is displayed based on the sensor log data received from the last poll. Use graph
management and Node Window options to congure the graph display.
e following conguration and tasks are performed from the Node Window:
- view and congure node properties
- print graph and printer setup
- close node window
- copy graph to clipboard
- insert manual event
- graph management
- customize graph settings
- clear graph overlays
- view data, calibration, event, & conguration event logs
- restore Node Window size to include access to systems management and poll
node buttons
- Systems Management access - viewing and uploading conguration to 5X00
AquaManager
- Graph Display options
- Manually poll node button
- Current data is displayed at the top of the graph during a manual poll
Systems Management
To open Systems Management, click on the Systems Management button located
to the right of the graph in the Node Window. Use the tabs to view and upload
conguration to node. e node conguration displayed is based on last poll.
e following conguration and tasks are performed from Systems Management
forms:
- view and congure node sensor and aux systems
- view and congure node timer and feed timer systems
- view and congure most node systems (5X00 system menu)
- congure node mapping icons
Notes:
- Always manually poll the 5X00 aer uploading conguration changes and
verify that the uploaded information is retained. When conguration changes
are uploaded using AquaManager at the same time conguration changes are
being made by a user in the menus at the 5X00, AquaManager uploads may
not be saved depending on the timing of keystrokes at the 5X00.
- e Run Screen must be displayed during normal operation. If the 5X00
is not at the run screen during AquaManager uploading, pressing
at
the 5X00 may only save certain conguration changes.
AquaManager
