Notes:
- Firmware can only be uploaded to an instrument using a local RS232 connec-
tion. See Downloader - page 119.
- On a network, install and congure RS232 or the serial to ethernet device
hardware on the master node only.
Email Alarming
Email alarming can be congured in 1 of 2 ways:
• from PC running AutoPoll Program that is included with AquaManager
soware (PC must have internet connection). is is referred to as Aqua-
Manager email.
• via a serial to ethernet* device with TCP/IP connection at the master 5X00.
is is referred to as 5X00 email.
*Serial to ethernet connection requires access to an SMTP server accessible by the
local network.
RS232 Communication

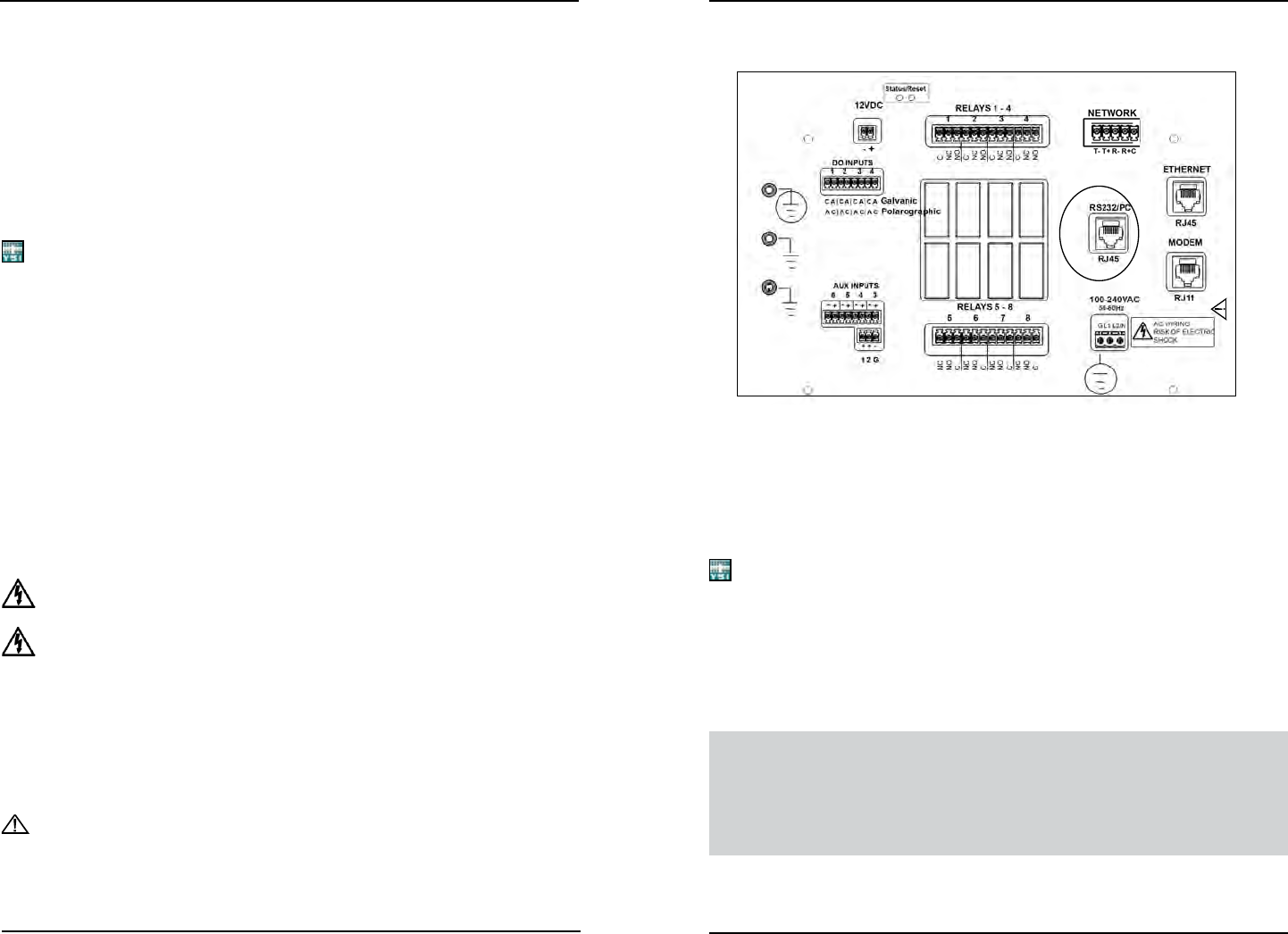

Use Category 5e patch cable from RS232 port at location J - gure 3.31 of I/O
Board to PC using RJ45 to DB9 adapter. (Common lettering references are used
for both 5400 and 5500 models).
Directions to Wire Direct RS232 PC Connection
WARNING: Disconnect external power to the unit before wiring.
AVERTISSEMENT: déconnectez l’alimentation externe de l’unité avant d’eectuer
un câblage quelconque.
1. Perform steps 1-4 of 5X00 installation and steps 5 - 8 as required for
the application.
2. Open front panel - page 42.
3. Feed direct connect cable through drilled hole of rubber grommet and
to location J.
CAUTION: Run high and low voltage cables through separate bulkhead and
conduit.
4. Connect one end of communication cable to RJ45 at location J. Connect
other end to RS232 PC com port using RJ45 to DB9 adapter gure 3.31.
󱂈
󱂈
󱂈
󱂈
󱂉
󱂊
󱂋
󱂌
󱂍
󱂎
󱂏
󱂐
󱂑
󱂒
󱂓
󱂔
󱂕
󱂖
Do not connect or disconnect IDC ribbon cable when 5400 is powered. Serious damage can occur.
gure 3.31
5. Complete other wiring to congure 5X00 system.
6. Close front panel - page 43.
7. Test RS232 communication.
Notes:
- When using a USB-Serial Adapter, verify that the port number assigned dur-
ing driver installation is the same port congured when using AquaManager
and/or the Firmware Updater
- Use only a Tripp-Lite Keyspan USB-Serial Adapter, model USA-19HS YSI
p/n 773 (64-bit).
- When making RS232 cable runs greater than 100 feet (30.5 m), use an RS232
Line Extender/Booster. Mount the booster in an area where it is protected
from moisture.
Test RS232 Communications
Apply power to 5X00. Insert node into AquaManager program. See AquaManager
Help to insert node and congure communication in PC application. Poll node. If
wired and congured properly, AquaManager will obtain 5X00 conguration and
5X00 logs.
