Energy Meter Owner manual

<Toc> <Ind> <1. Before Using the Software>
1-1
1. Before Using the Software
1.1 Overview of the Configuration Software
The POWERCERT PC Parameter Setting Tool is the software having the following
functions.
Function
• Send and receive the parameter settings.
• Set the display pattern (for the PR300 only).
• Set and reset the energy value online.
• Save the setup data to a file.
• Edit the setup data.
• Print the setup data.
Flow of Operation

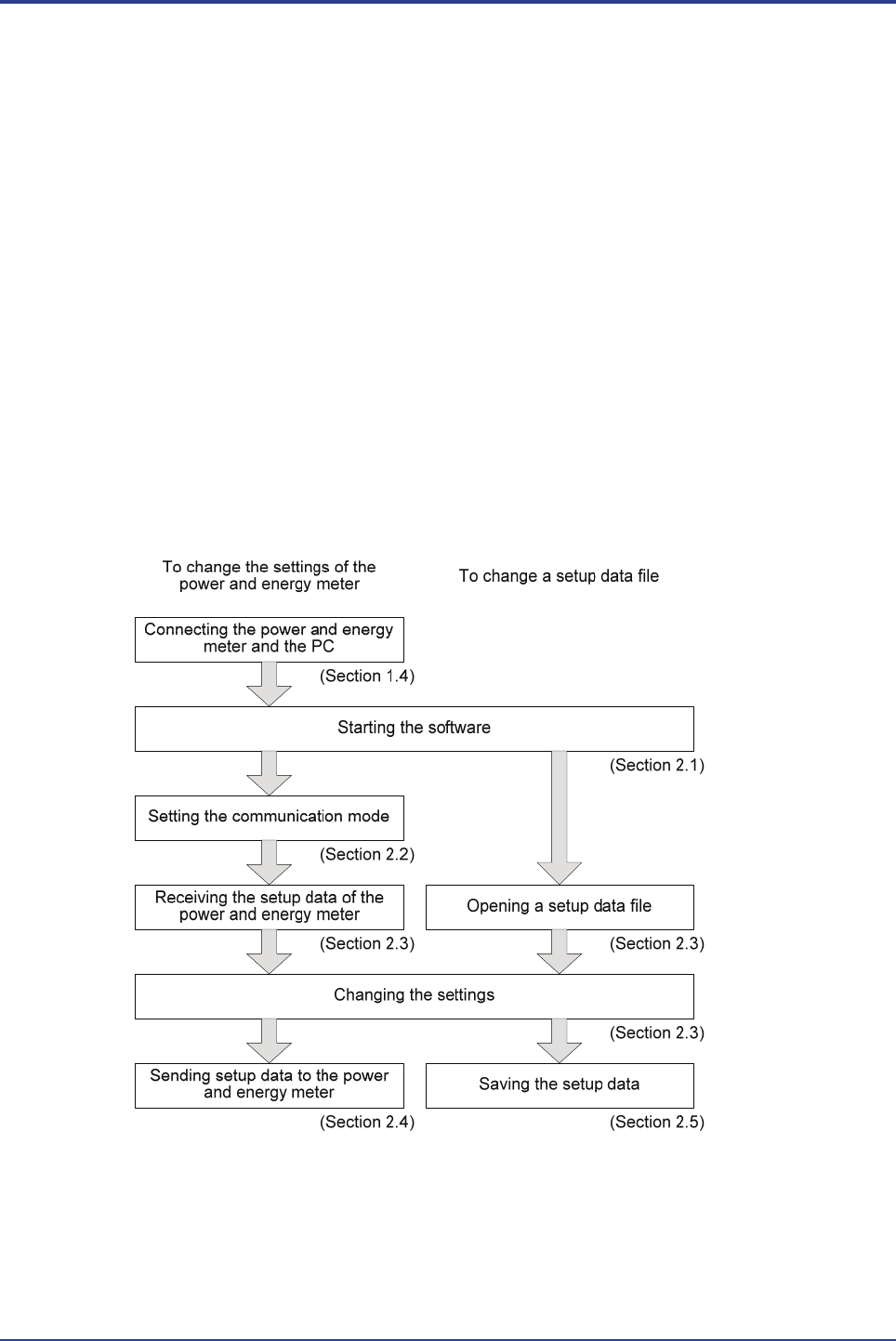

The flow of operation of the software is shown below.
Figure1.1 Flow of Operation
IM 77C01Y01-01E
