<Toc> <Ind> <2. Configuring the Power and Energy Meter>
2-5

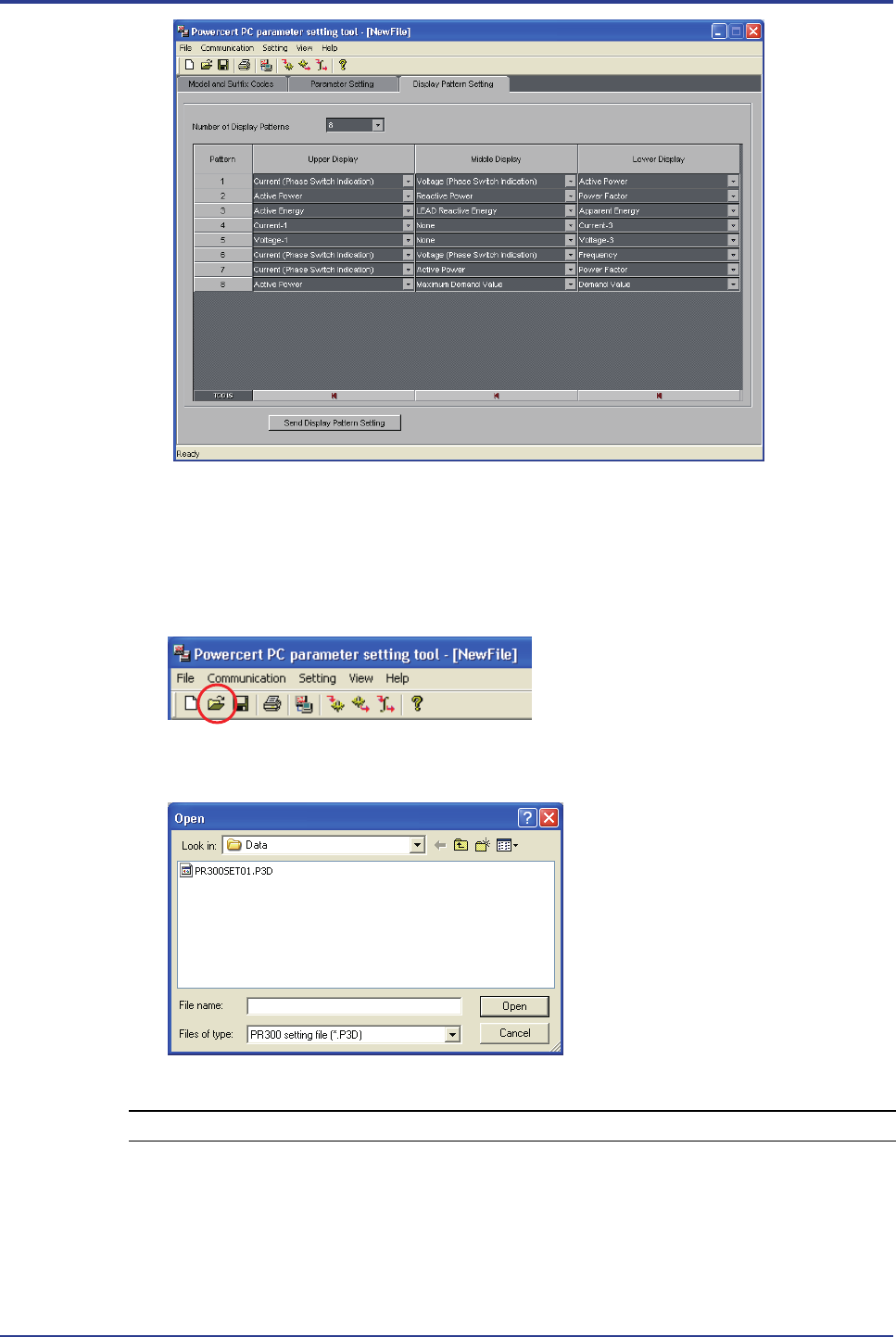

Figure2.8 Display Pattern Setting Screen (for the PR300 Only)
Opening a Setup Data File
1. From the File menu, choose Open. You can also click the Open icon on the tool
bar. The Open dialog box opens.
2. Select the desired file, and click Open.
The setup data is displayed.
Note
The extensions to setup data files are .P3D for the PR300 and .U1D for the UPM100/UPM101.
