4.3 Displaying Measured, Instantaneous, and Maximum/Minimum Values

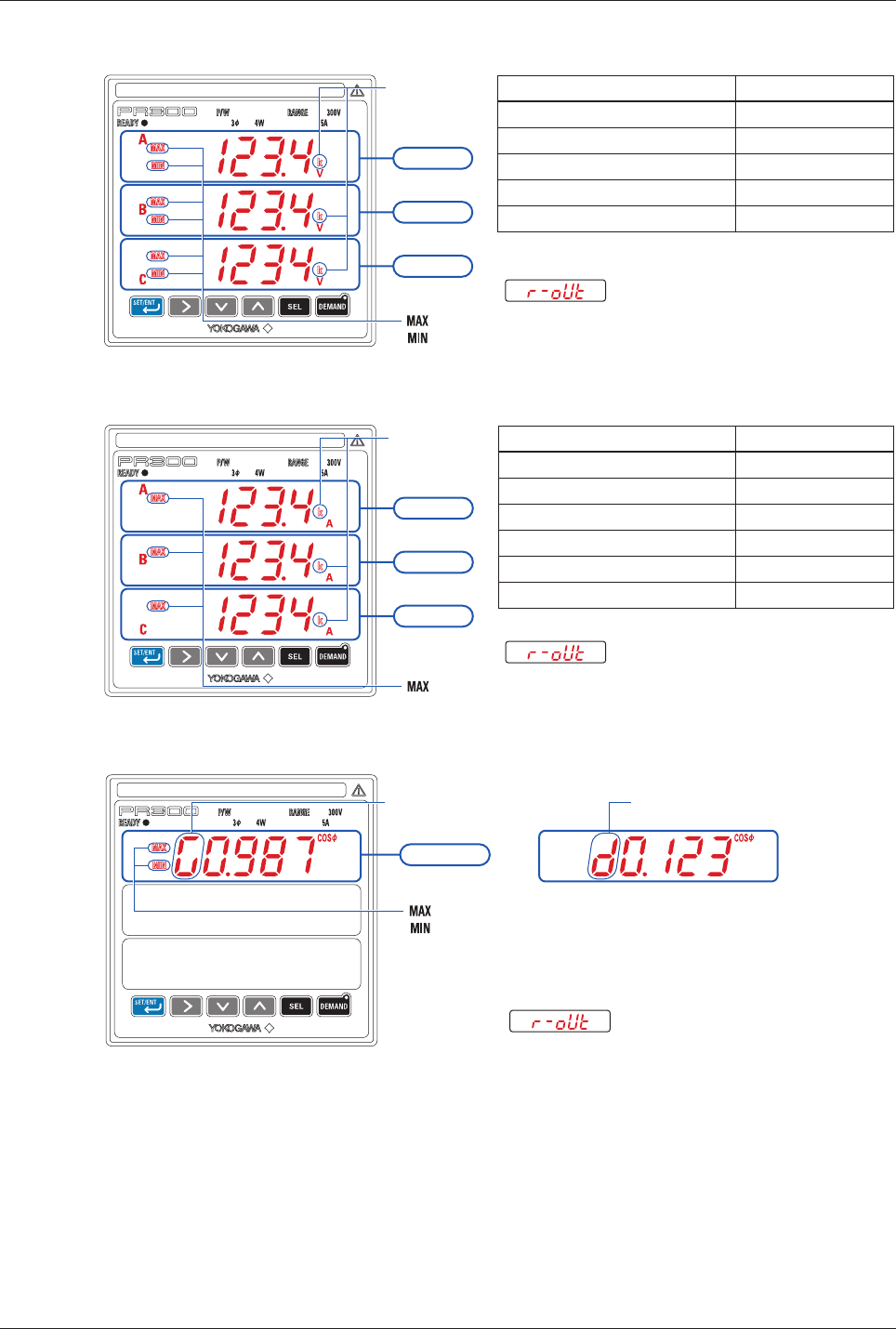

Example Display and Measuring Ranges of Voltage
Voltage-2
Voltage-1
Voltage-3
Voltage range 1.2 VT ratio
100 V to less than 1 kV
1 kV to less than 10 kV
10 kV to less than 100 kV
100 kV to less than 1 MV
1 MV to less than 10 MV
Measuring range
0.0 to 999.9 V
0 to 9999 V
0.00 to 99.99 kV
0.0 to 999.9 kV
0 to 9999 kV
Supplementary
unit
(refer to the
table on the right)
: Turns on while the maximum value is displayed.
: Turns on while the minimum value is displayed.
The following will appear when the input value is
less than [voltage range 0.1 VT ratio] or
[voltage range 1.2 VT ratio] or more.
and the measured value blink alternately.
Example Display and Measuring Ranges of Current
Current range 1.2 CT ratio
0.06 A to less than 10 A
10 A to less than 100 A
100 A to less than 1 kA
1 kA to less than 10 kA
10 kA to less than 100 kA
100 kA to less than 1 MA
Measuring range
0.000 to 9.999 A
0.00 to 99.99 A
0.0 to 999.9 A
0 to 9999 A
0.00 to 99.99 kA
0.0 to 999.9 kA
Current-2
Current-1
Current-3
Supplementary
unit
(refer to the
table on the right)
: Turns on while the maximum value is displayed.
The following will appear when the input value is
[current range 1.2 CT ratio] or more.
and the measured value blink alternately.
Example Display and Measuring Ranges of Power Factor
Power factor
Symbol indicated when the value
is LAG power factor.
Symbol indicated when the value
is LEAD power factor.
The following will appear when the measurement is out of range:
: Turns on while the maximum value is displayed.
: Turns on while the minimum value is displayed.
and the measured value blink alternately.
Measuring range: (LEAD) 0.500 to 1 to 0.500 (LAG)
* When the power factor is 1, the symbols indicating LEAD and LAG power factors are not displayed.
