Parameter Setting Operations
3-11
IM 77C01E01-01E
1
2
3
4
5
A
I
3.6 Setting Pulse Output Conditions
NOTE
If the pulse unit and ON pulse width do not satisfy the following conditional expression, the updated
pulse unit setpoint or ON pulse width setpoint reverts to the value before change.
ON pulse width [ms]
Pulse unit [kWh] 3600 1000
2
Primary rated power 1.2 2

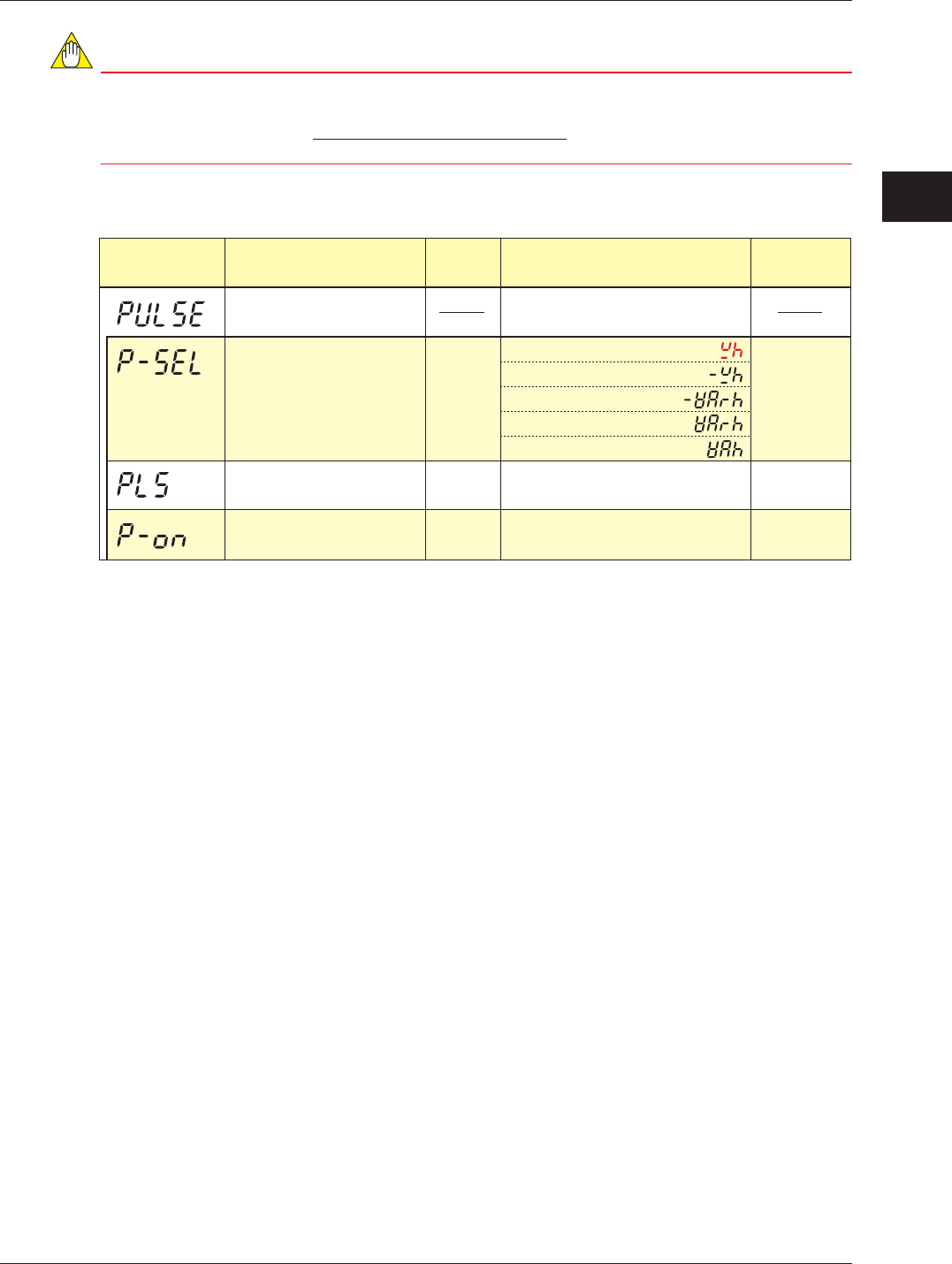

Parameter Setting Types and Ranges
Pulse output menu
Measurement item for
pulse output
Pulse unit
ON pulse width
Selection
Fixed-point
numeric
value
Integral
numeric
value
Active energy
Regenerative energy
LEAD reactive energy
LAG reactive energy
Apparent energy
0.1 to 5000.0 k (/pulse)
10 to 1270 (ms)
(changeable in increments of 10 ms)
Menu to shift to the parameters of
pulse output
Active energy
50
1.0
Parameter Symbol Parameter Name
Setting
Type
Setting Range (Details)
Initial Value
(Factory-set
Value)
