System Configuration
GateDX-P
Up to 16 DX100P/DX200Ps
TCP/IP connection
Monitor server protocol
Data transfer
Remote Monitor
Converter
It is recommended that you run GateDX-P and DAQLOGGER on separate PCs.
Software Configuration
DX100P/DX200P
DAQLOGGER
Ethernet
Ethernet
GateDX-P
Environment setting
functions
Displays execution
status
Writes to file
Environment
settings file
File read out
Status information
Executable
function
Remote Monitor
Serial
communications

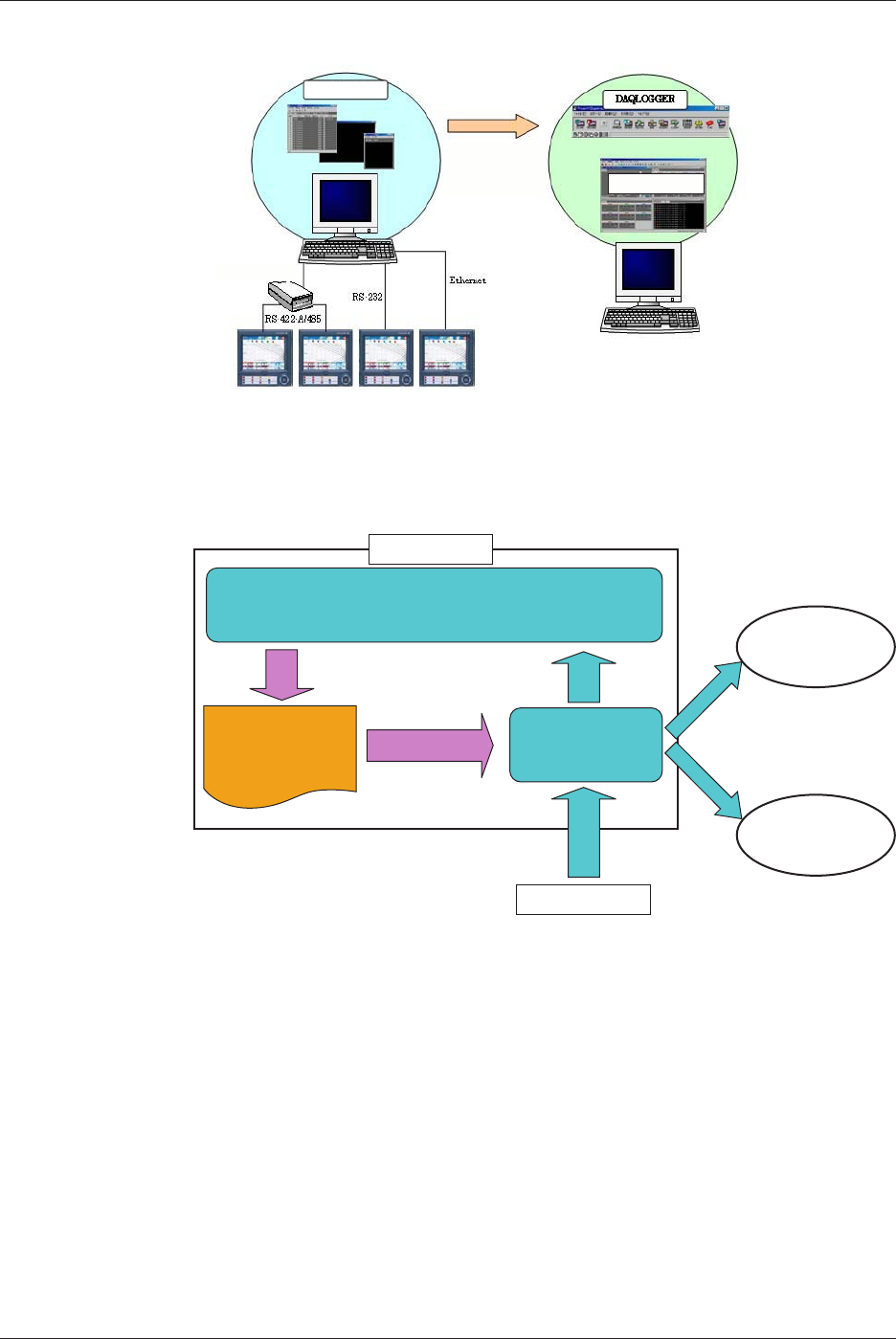

GateDX-P Configurator consists of two separate software functions. The role of each
function within the configurator is as follows:
• Environment Setting Functions
Acts as the user interface for GateDX-P.
These functions allow the user to enter various settings required by the executable
function for communications with the DX100P/DX200P, as well as those required for
data transfers to and from DAQLOGGER and Remote Monitor. The user can also
use the environment setting functions to start/stop the executable function, or view the
execution status.
• Executable Function
The software reads data from the DX100P/DX200P at xed intervals. It also acts as a
monitor server, transferring data to DAQLOGGER and Remote Monitor.
1.2 System Overview
