StartingComputation(RD-MV1000client)
◊ Press FUNC > Mathstart
Computation starts, and the status display section shows the math icon.

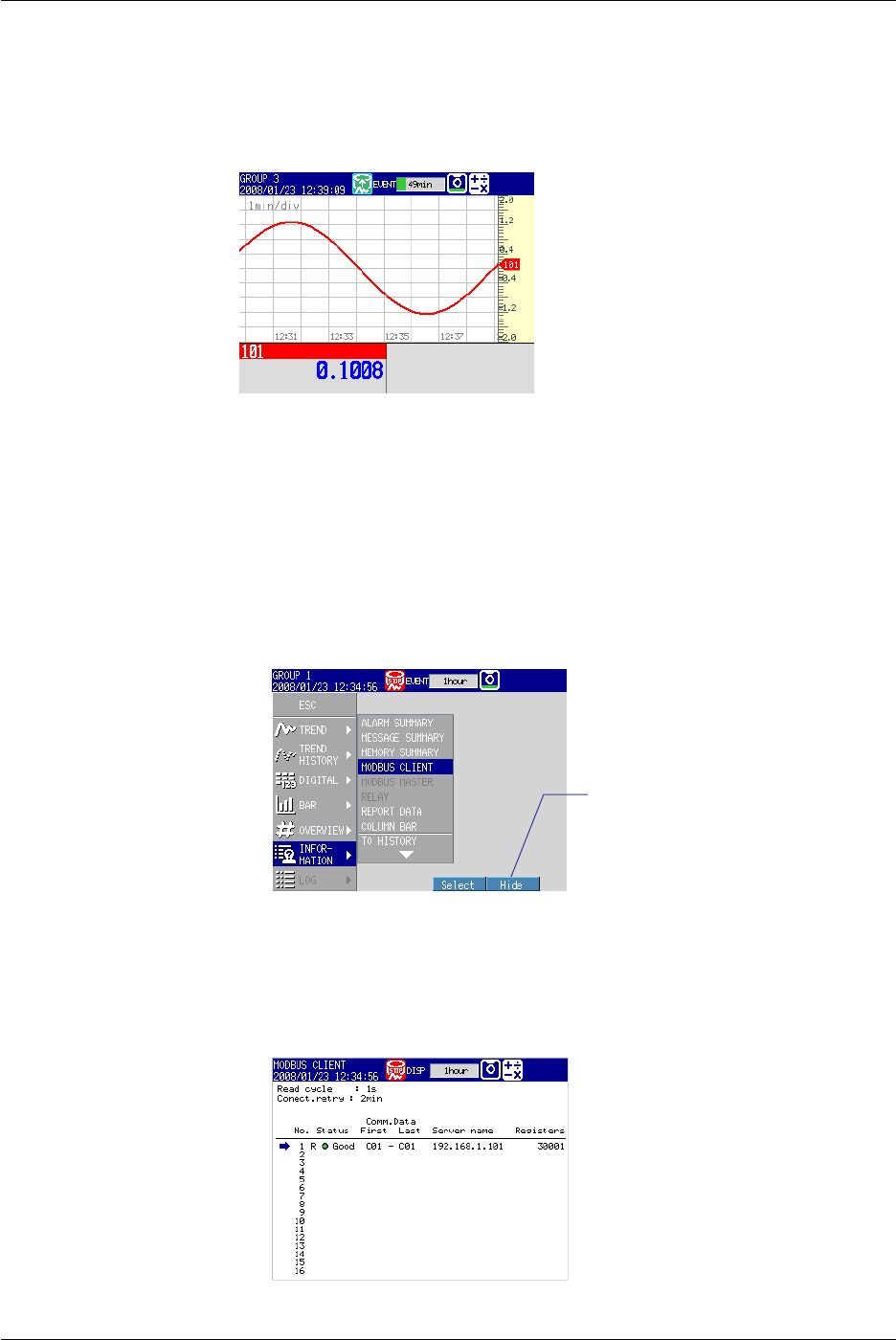

The value of the RD-MV1000 client’s computation channel 101 shown in GROUP
1 varies in sync with the measured value of the RD-MV1000server’s measurement
channel 1.
CheckingtheModbusOperatingStatus(RD-MV1000client)
ShowingtheMenuUsedtoSwitchtotheModbusClientScreen
Carry out the procedure below to show INFORMATION > MODBUSCLIENT in the
display selection menu.
◊ Press MENU and then select Menu tab > Menucustomize > Displaymenu
1.
Select INFORMATION > MODBUSCLIENT using the arrow keys.
* Select MODBUSMASTER to use Modbus master via the serial interface.
2.
Press the View soft key.
The menu item is enabled and is displayed in white.
View/Hide
Pressing the View soft key changes
the soft key to Hide.
3.
Press ESC several times to return to the operation screen.
DisplayingtheModbusClientScreen
◊ Press DISP/ENTER and then select INFORMATION > MODBUSCLIENT
* Select INFORMATION > MODBUSMASTER to use Modbus master via the serial
interface.
