ConfiguringComputationChannels

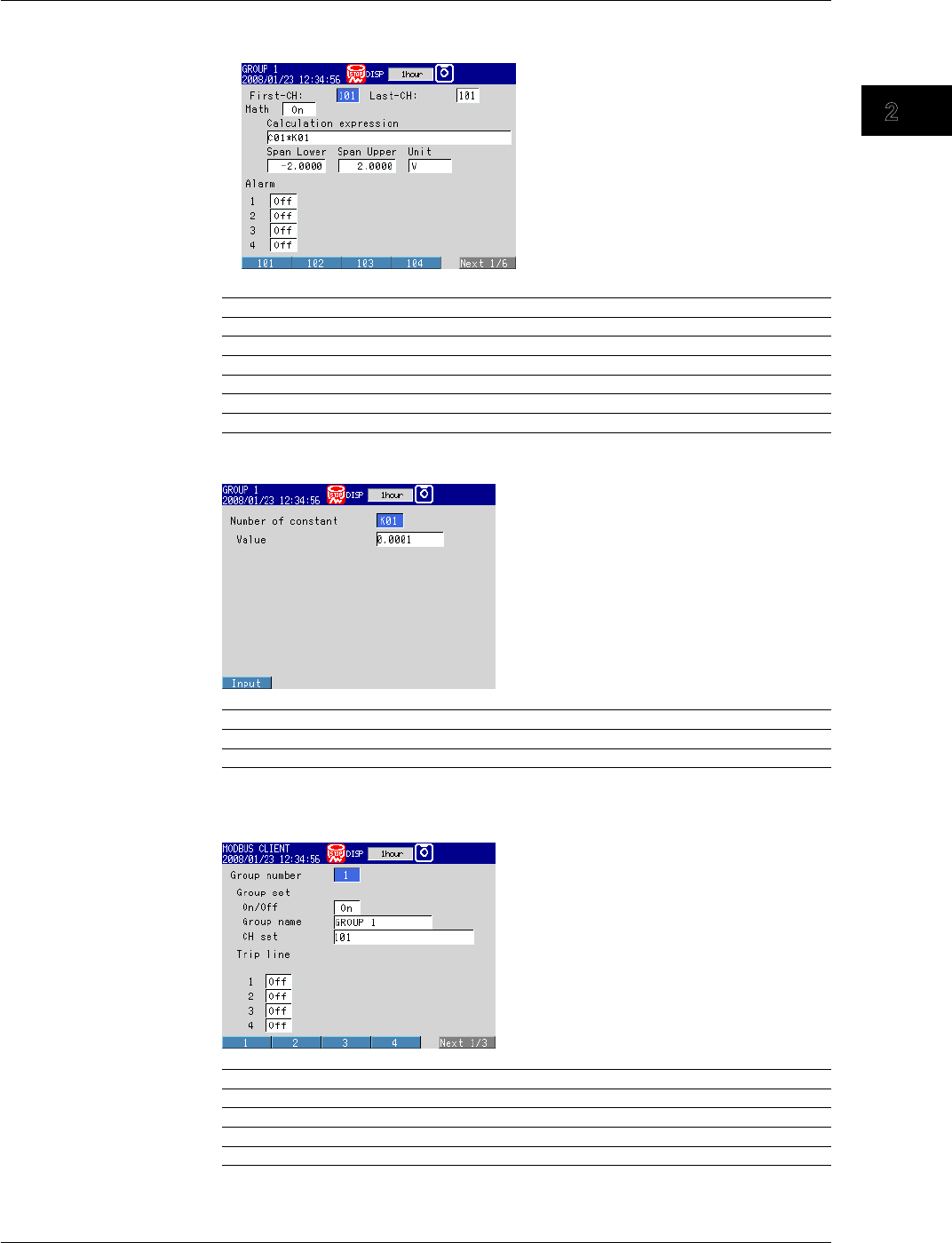

◊ Press MENU and then select Menu tab > Mathchannel > Expression,Alarm
Parameter Setting
First and Last 101
Math On
Calculation expression 01
*
K01
Span Lower –2.0000
Span Upper 2.0000
Unit V
◊ Press MENU and then select Menu tab > Mathchannel> Constant
Parameter Setting
Number of constant K01
Value 0.0001
AssigningaChanneltoaGroup
◊ Press MENU and then select Menu tab > Groupset,Tripline
Parameter Setting
Group number 1
On/Off On
Group name GROUP 1
CH set 101
