SettingtheCommunicationConditions
RD-MV1000

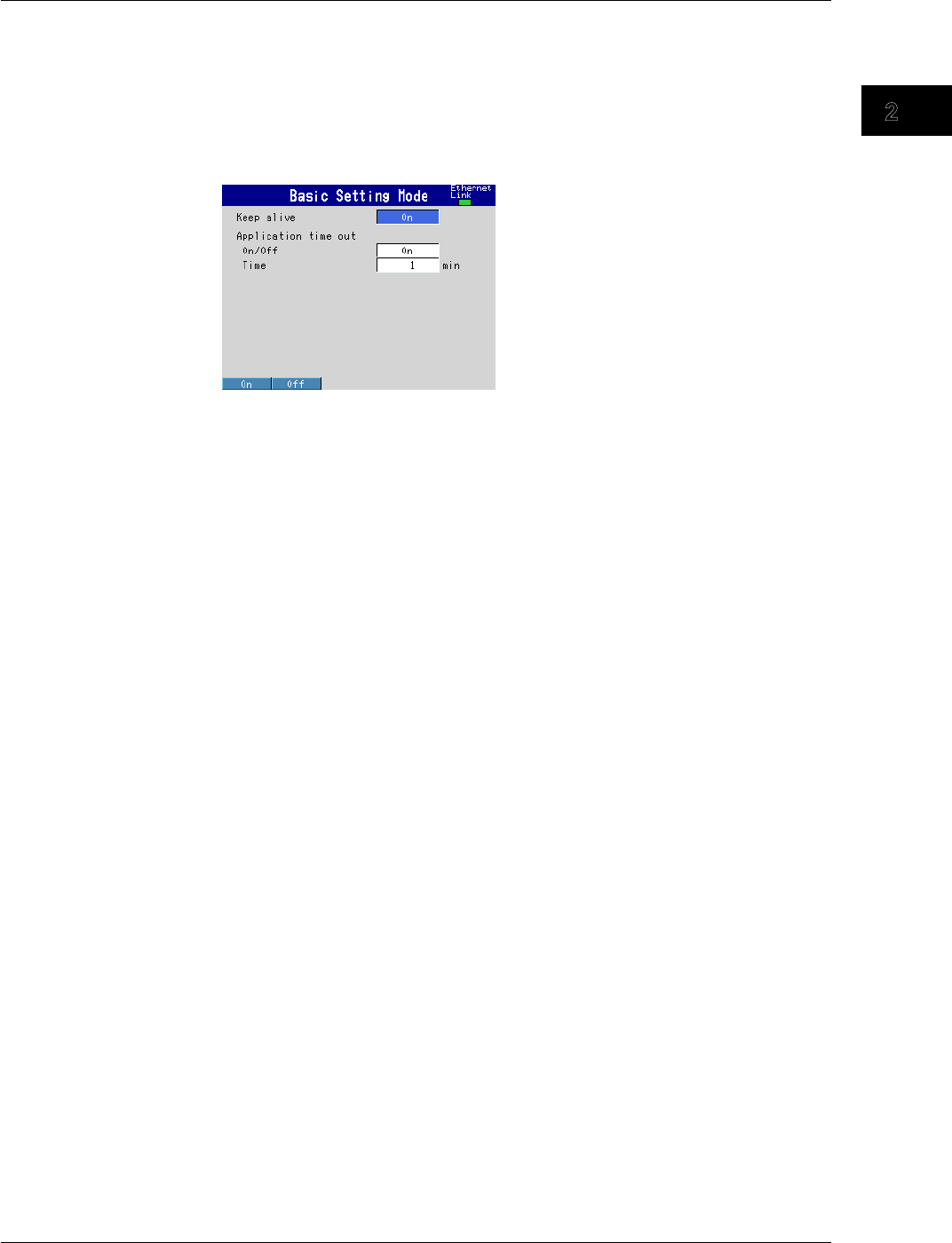

◊ Press MENU and then select Menu tab > Basicsettingmode > Menu tab >
Communication(Ethernet) > Keepalive,Timeout
RD-MV2000
◊ Press MENU and then select Menu tab > Basicsettingmode > Menu tab >
Communication(Ethernet) > Keepalive,Applicationtimeout
SettingtheKeepaliveFeature
To disconnect when there is no response to the test packets that are periodically sent,
select On. Otherwise, select Off.
SettingtheApplicationTimeout
• Selecting On or Off
To use the application timeout feature, select On. Otherwise, select Off. If you select
On, the Time parameter appears.
• Time
Set the timeout value in the range of 1 to 120 (minutes).
CheckingtheCommunicationStatus
You can check the Ethernet communication status with the LED lamp that is provided on
the MV rear panel Ethernet connector or the Ethernet link that is shown at the upper right
of the basic setting screen.
