• Syntax
E2_ee:nnnCRLF
(When there is only one error)
E2_ee:nnn,ee:nnn,···,ee:nnnCRLF
(When there are multiple errors)
ee
Error position (
01
to
10
)
nnn
Error number (
001
to
999
)
_
Space
• Example
E2 02:001
TextOutput
For information about text data types and data formats, see section 5.2.
• Syntax
EACRLF
···············CRLF
:
···············CRLF
···············CRLF
ENCRLF
BinaryOutput

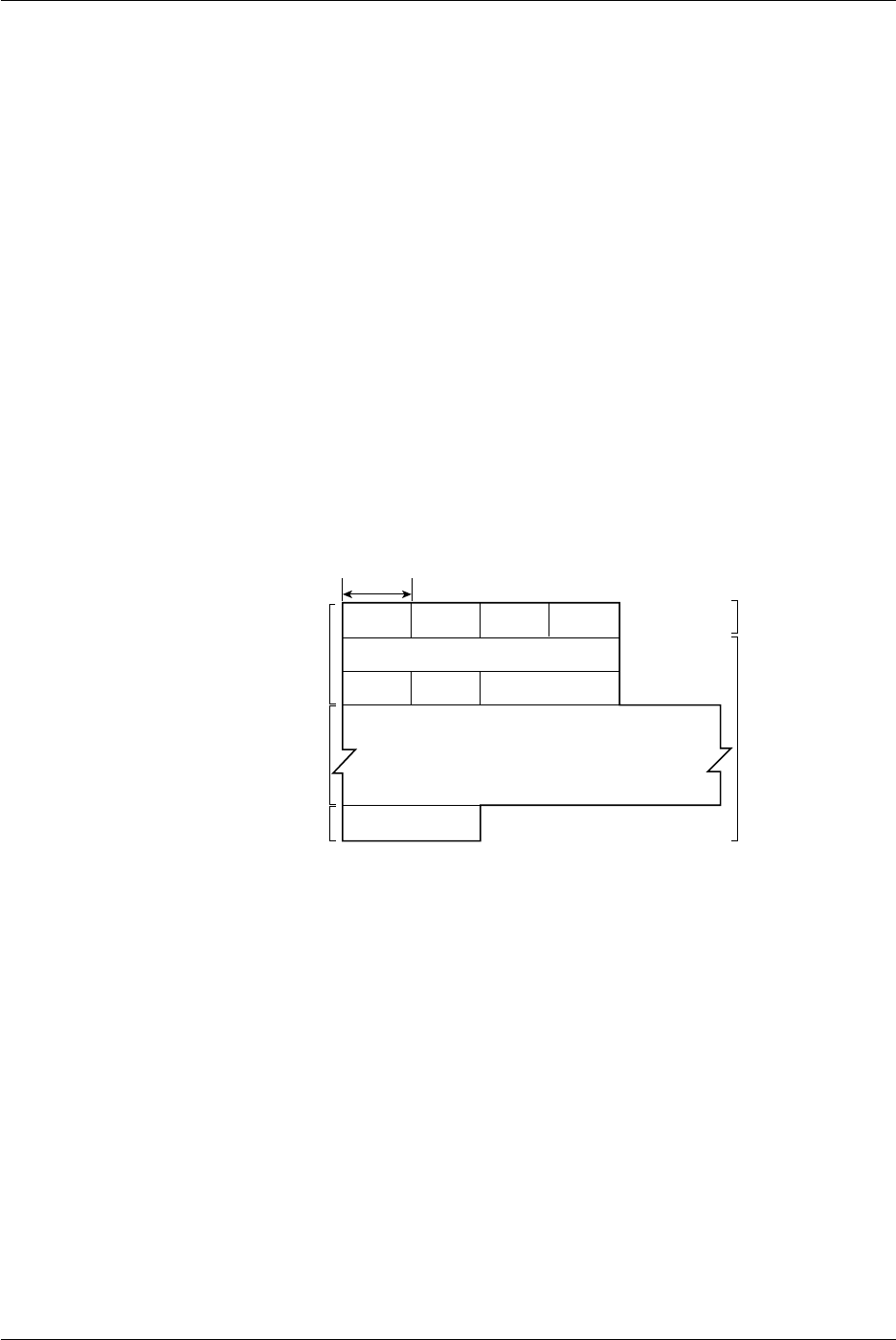

ConceptualDiagram
‘E’ ‘B’ CR LF
Binary data
ASCII format
Binary format
Data length
Data sum
Flag ID Header sum
1 byte
Binary header
(12 bytes)
Binary data
Binary footer
(2 bytes)
EBCRLF
Indicates that the data is binary.
DataLength
The number of bytes in “flag + identifier + header sum + binary data + data sum.”
HeaderSum
The sum value of “data length + flag + identifier.”
BinaryValue
For information about output formats of various data types, see section 5.3.
