Instruction Manual

Model code SuffixCode Description
Options /A1 Two alarm output relays
3
/A2 Four alarm output relays
3
/A3 Six alarm output relays
3
/A4 12 alarm output relays
3
,
4
/C2 RS-232 interface
5
/C3 RS-422/RS-485 interface
5
/F1 FAIL/Status output
4
/M1 Mathematical functions
7
/N1 Cu10, Cu25 RTD input/3-wire isolated RTD
/N2 3-wire isolated RTD
6
/N3 Extended input type (PR40-20, JPt50, etc.)
/R1 Remote control
/TPS4 24 VDC transmitter power supply (4 loops)
7
/PM1 Pulse input (including remote control and
mathematical functions)
8
/CC1 Calibration correction function
/MC1 External input function
9
1 Does not come with an AC adapter if the power
cord suffix code is W.
6 The /N2 option cannot be selected for the RD-MV2008.
7 The /A4 option cannot be combined with the /TPS4 option. If
the /TPS4 option is selected, the /A3 and /F1 options cannot be
combined with each other.
2 Can be selected if the supply voltage suffix code
is -2.
3 The /A1, /A2, /A3, and A4 options cannot be
combined.
8 The /A4, /M1, and /R1 options cannot be combined with the /PM1
option. If the /PM1 option is selected, the /A2 and /F1 options
cannot be combined with each other, and neither can the /A3 and /
TPS4 options.
4 The /A4 and /F1 options cannot be combined.
5 The /C2 and /C3 options cannot be combined.
9 The /MC1 option cannot be selected for the RD-MV2008.

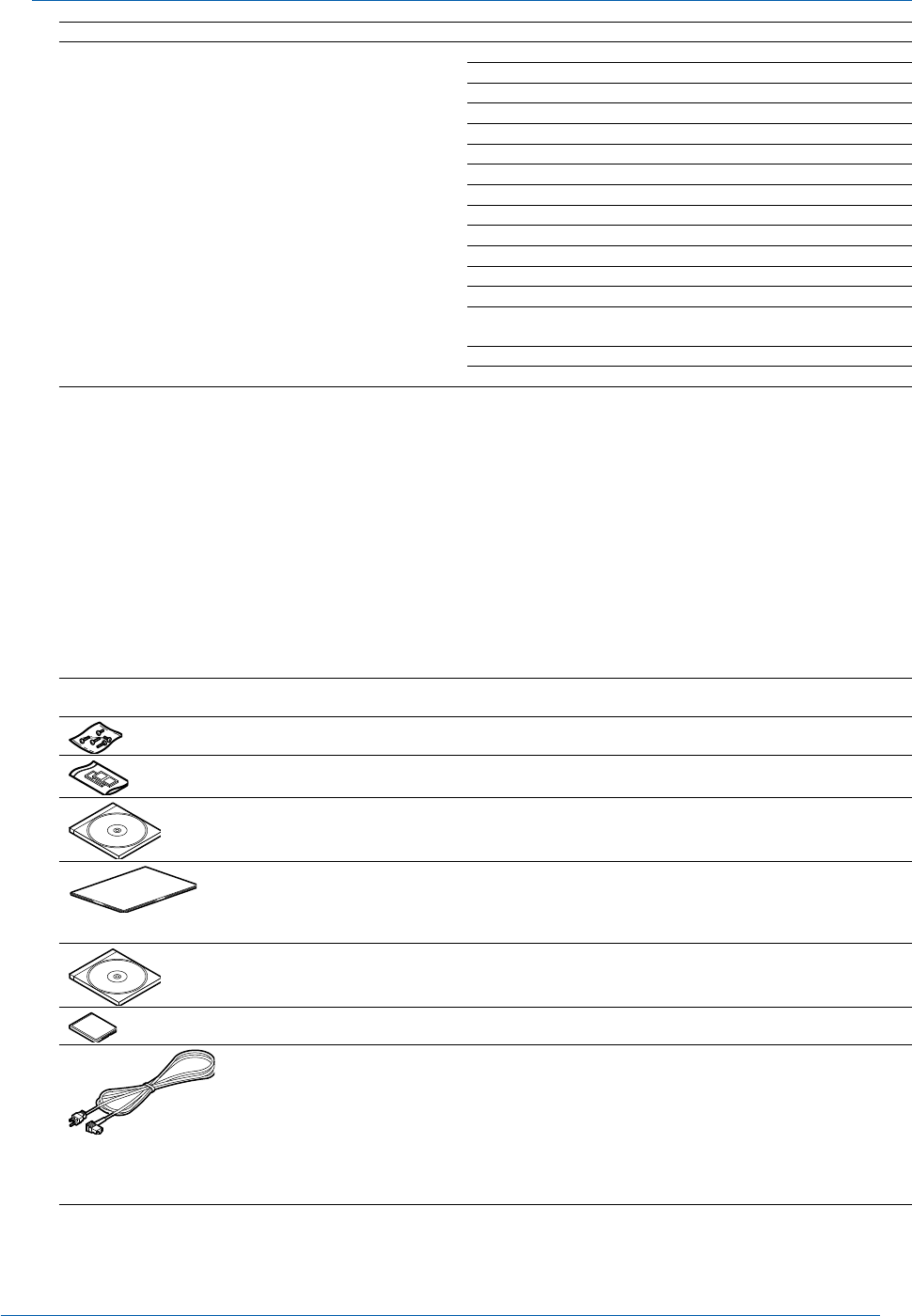

Standard Accessories
The standard accessories below are supplied with the instrument. Check that all contents are present and
undamaged.
No. Name Part number/
Model
Qty. Notes
Terminal screws E9655FX 5 M4 (spare)
Rubber feet A9088ZM 2 2 (1 pair)
DAQSTANDARD DXA120 1 CD-ROM. MV configuration and data display software
RD-MV2000 First
Step Guide (this
manual)
Proper disposal
IM RD-MV2000-
02E
IM MV1000-91C
1
1
Paper size: A4
User’s Manuals
for the MV1000/
RD-MV2000
B8806ZZ 1 A CD with a PDF file of the MV1000/RD-MV2000 User’s
Manual and a PDF file of the Communication Interface
User’s Manual.
128
MB
CF card B8706NQ 1 128 MB (size and model are subject to change)
Power cord When the supply voltage suffix code is -1, one of the
following cables is included, depending on the power
cable suffix code.
A1074WD 1 Power cord suffix code D. Maximum rated voltage: 125 V
A1009WD 1 Power cord suffix code F. Maximum rated voltage: 250 V
A1024WD 1 Power cord suffix code R. Maximum rated voltage: 250 V
A1054WD 1 Power cord suffix code Q. Maximum rated voltage: 250 V
A1064WD 1 Power cord suffix code H. Maximum rated voltage: 250 V
Checking the Contents of the Package
