5. BASIC OPERATING PROCEDURES
5.2 Display Unit Setting Methods
NOTE
Before changing any settings, be sure to check the corresponding setting details
in Chapter 6: Parameter Description.

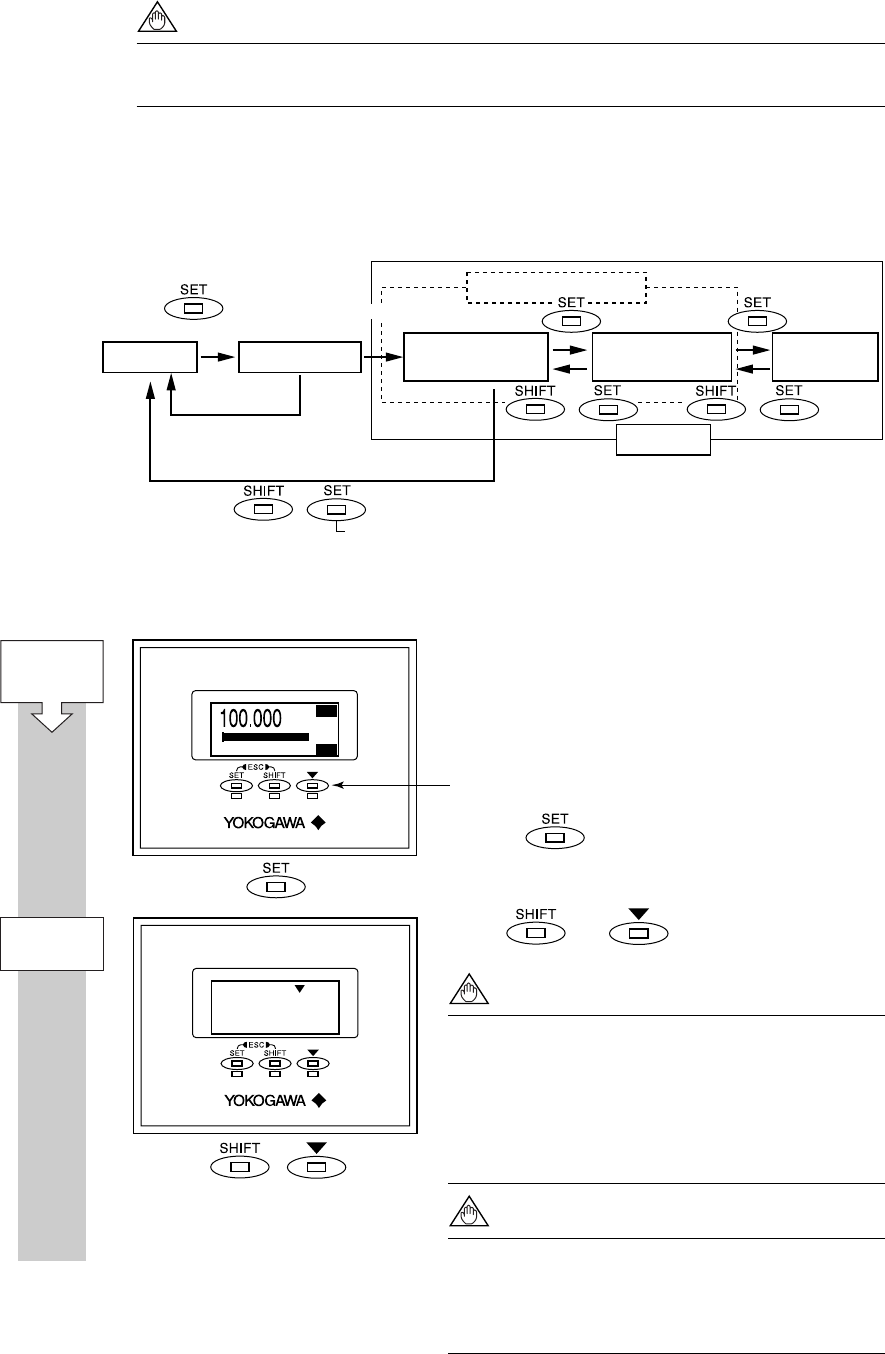

5.2.1 Display Mode → Setting Mode
Display Mode will be adopted when the power is turned on, and the Setting Mode can be
activated using the following procedure.
(2 seconds or more)
Select “No”
Press the SET switch while holding down the SHIFT switch.
Display Mode Entry Mode
Parameter Search Mode
Major Item Parameter
Search Mode
Sub-item Parameter
Search Mode
Parameter
Replacement Mode
Setting modes
F0502.EPS
+
+ +
* The term "mode" is used to refer to a situation
where display and setting are possible.
Select “Yes”
Sample Display: Procedure for moving from Display Mode to Setting Mode
1st line: Actual instantaneous flow rate [FR]
2nd line: Bar graph indicating instantaneous flow
rate
3rd line: Totalized forward flow rate [FTL]
Hold the switch for 2 seconds.
Touch and switches simultaneously.
NOTE
When other operations are carried out, the
system will automatically return to the Display
Mode.
When no operations in this display are carried
out for 20 seconds, the system will automati-
cally return to the Display Mode.
NOTE
(*1)
The Major Item Parameter which is set just
before will be shown when entrying the Setting
Mode again within 1 minute after returning
from Setting Mode to Display Mode.
Touch SHIFT + key
FR
m
3
/h
: : :
100
3274m
3
FTL
0
F0503-1.EPS
Setting switches
Start:
Display Mode
Entry Mode
(*1)
