IM 01E20C01-01E
4-4
4. WIRING
(3) Conduit Wiring
When wiring the conduits, pass the conduit through the
wiring connection port, and utilize the waterproof
gland to prevent water from flowing in. Place the
conduit pipe on an angle as shown in Figure 4.3.5.
Install a drain valve at the low end of the vertical pipe,
and open the valve regularly.

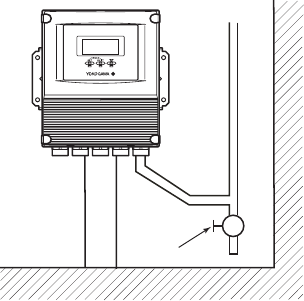

Drain valve
F0408.EPS
Figure 4.3.5 Conduit Wiring
