5. Installation and Cabling Instructions
The amplifier can be mast mounted using the steel U-bolt
included with the unit (Refer to the drawing at the end of the
manual for a cabling diagram). The amplifier should be installed
with the connectors facing downward. Use an open-end wrench
to carefully tighten the bolts using the included nuts. Take care
not to over-tighten the bolts.
The amplifier can be mounted to a flat surface using any of the mounting holes on the
brackets mounting flanges. However, for maximum reliability, the connectors should be facing
downward.
It is very important to waterproof the RF connectors on the amp. However, it is recommended
that you do not tape the connectors until after all system tests have been performed. Be sure
to use a high quality weather resistant electrical tape and/or other water sealant method.
The DC Power Injector is not in a waterproof enclosure and must be protected from the
weather. It can be permanently mounted to a surface by putting screws through the two holes
on the bottom of the enclosures. To do this, remove the four screws holding the top cover on
the enclosure. Then mount the bottom of the enclosure using screws or bolts through the two
holes in bottom. Replace the top cover when the enclosure is securely mounted. Avoid
touching the circuit board mounted to the cover of the DC injector when the cover is off.
Refer to the Typical Installation Details drawing at the end of this manual for more information
about the installation.

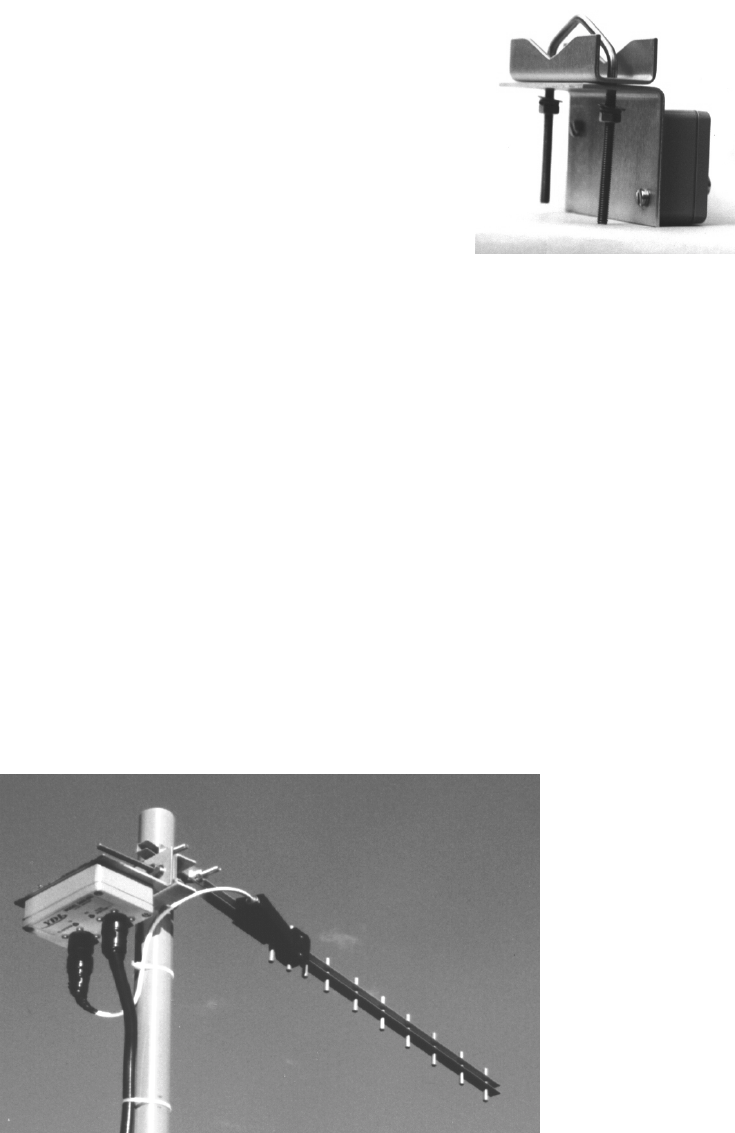

Amplifier in typical installation.
Shown with the YDI Model Y2414 Yagi Antenna.
