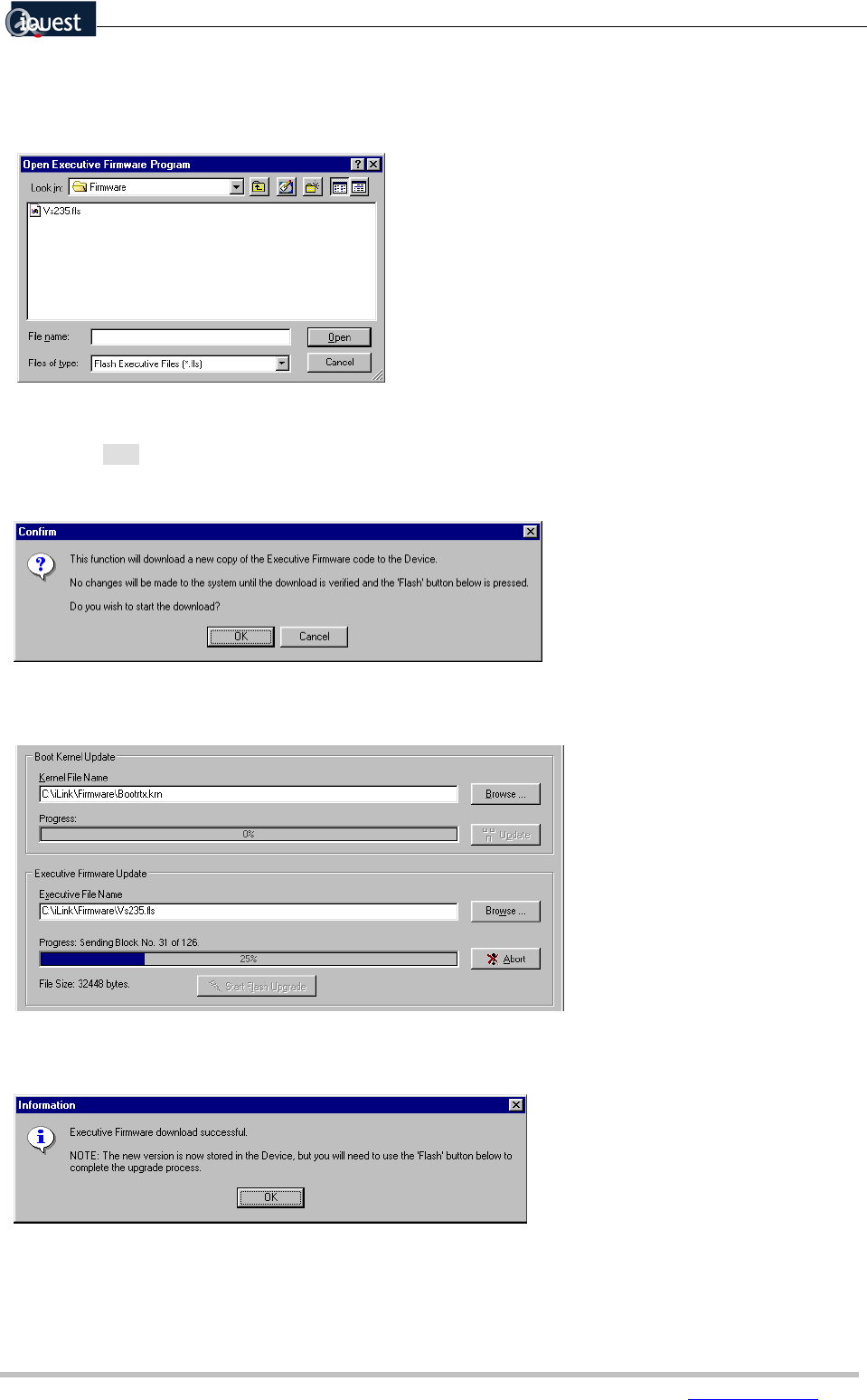

The flash executive files are stored in the default firmware directory, /iLink/firmware/, and are identified by
the filename extension .fls.
Select the file to upload to the datalogger.
Click the [Load] button in the ‘Executive Firmware Update’ panel to begin the upload. You will be
prompted to confirm the upload before the file transfer begins.
During the update process, a progress indicator provides visual feedback of the status of the upload
Once the update is complete, a dialog will be shown confirming that the update was successful.
