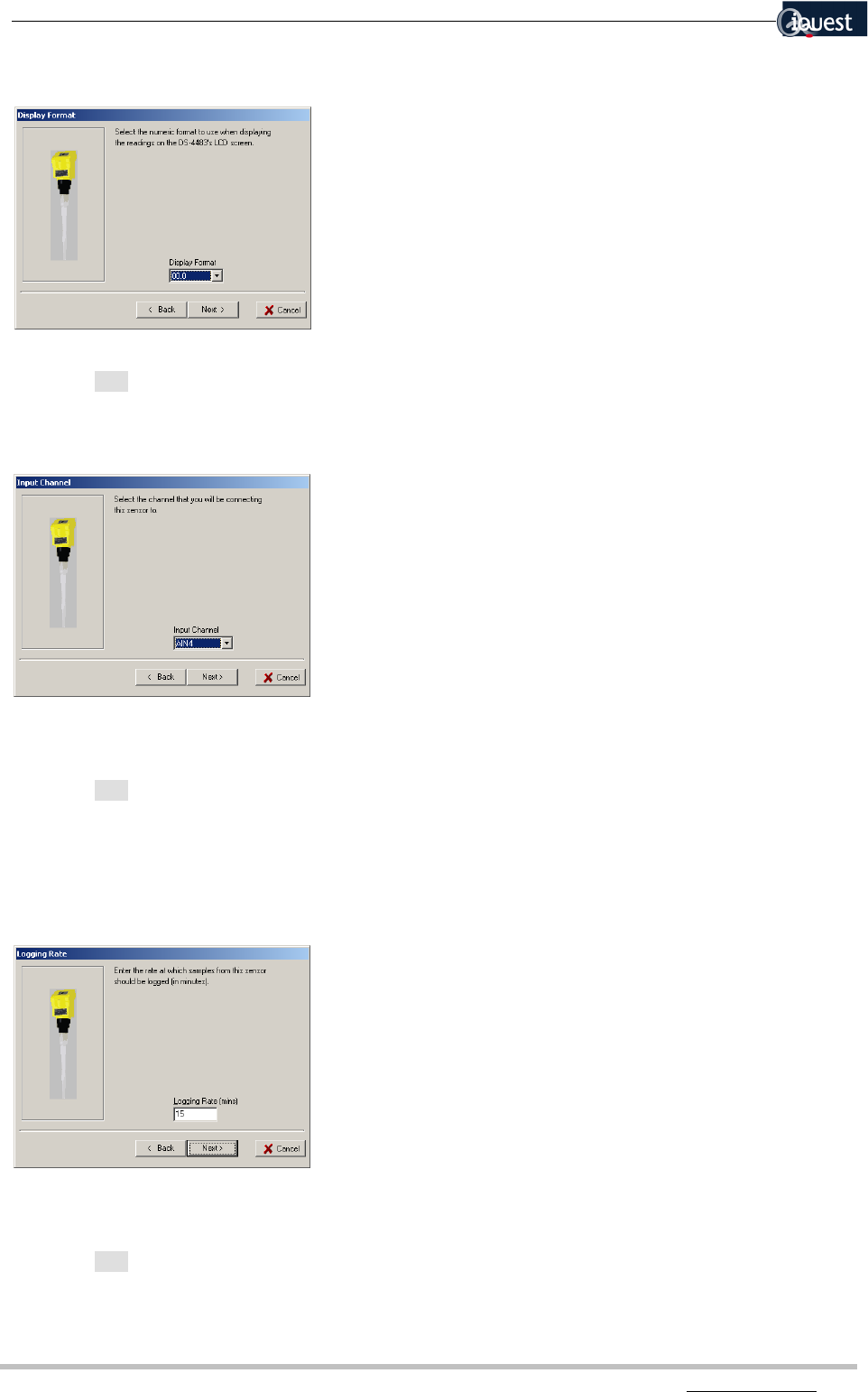

Display Format
1. Select the desired display format from the list of options, or accept the default suggested.
2. Click [Next] to continue.
Input Channel Selection
1. Select the input channel to which the sensor is/will be connected. You will only be able to select from
those channels that are appropriate to the device. In the example here, a choice of Analogue Input
Channels is presented to match the Aquaflex moisture probe selected earlier.
2. Click [Next] to continue.
Logging Rate
1. Enter the logging rate you require for the sensor. This setting will determine how often a value is
logged for the sensor in the DS-4483 database. It does not affect how often readings are taken from
the sensor. This can be configured manually at a later stage if required.
2. Click [Next] to continue.
