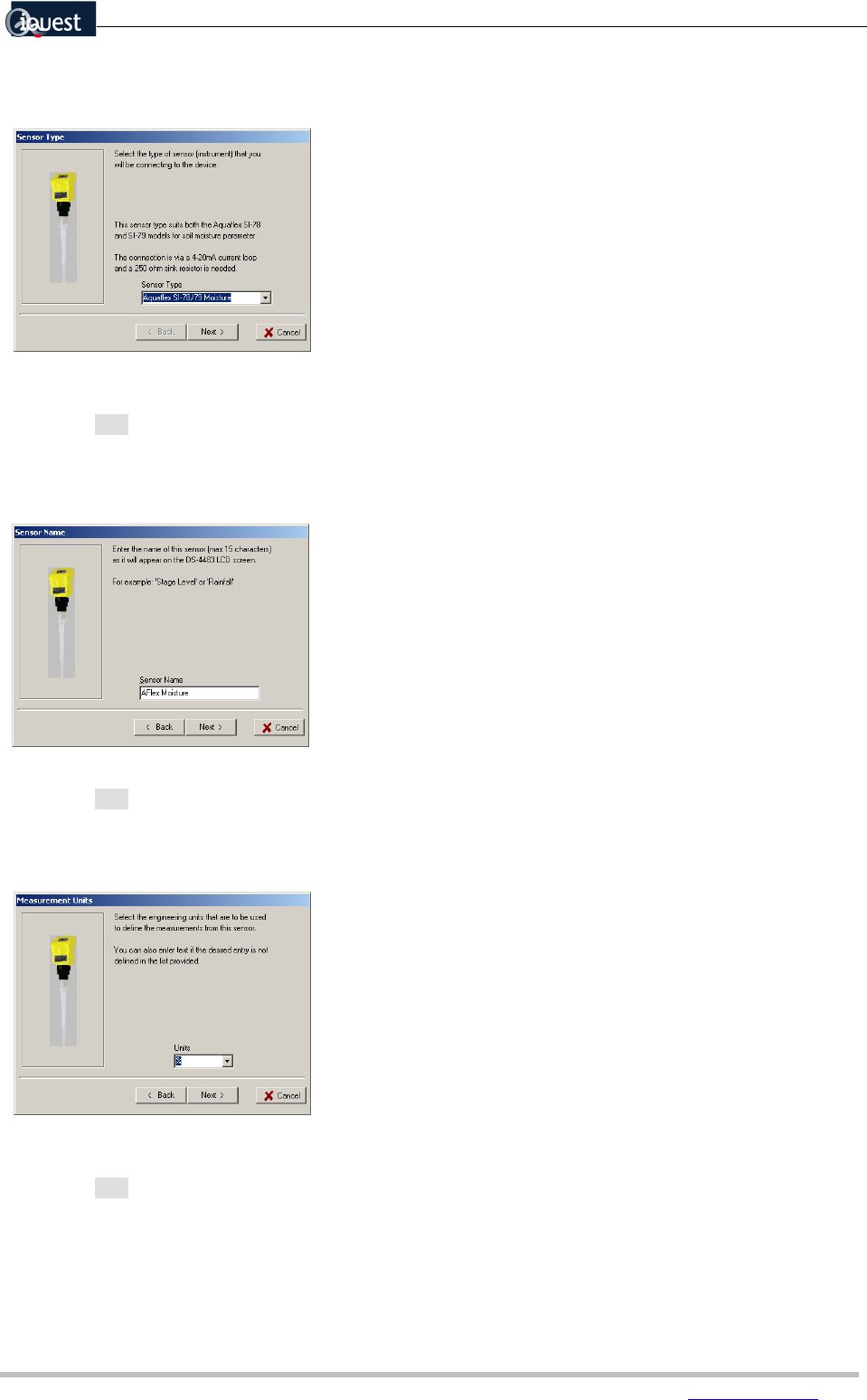

Sensor Type
1. Select the sensor you wish to create. In the example above, an Aquaflex moisture probe has been
selected.
2. Click [Next] to continue.
Sensor Name
1. Enter a name for the sensor. A maximum of 15 characters is permitted.
2. Click [Next] to continue.
Measurement Units
Select the engineering units to be used with the sensor. If the unit you desire is not found in the list,
you can enter your own by typing it in the edit box.
Click [Next] to continue.
