iLink - Configuration and Support Utility 31
iquest@iquest.co.nz

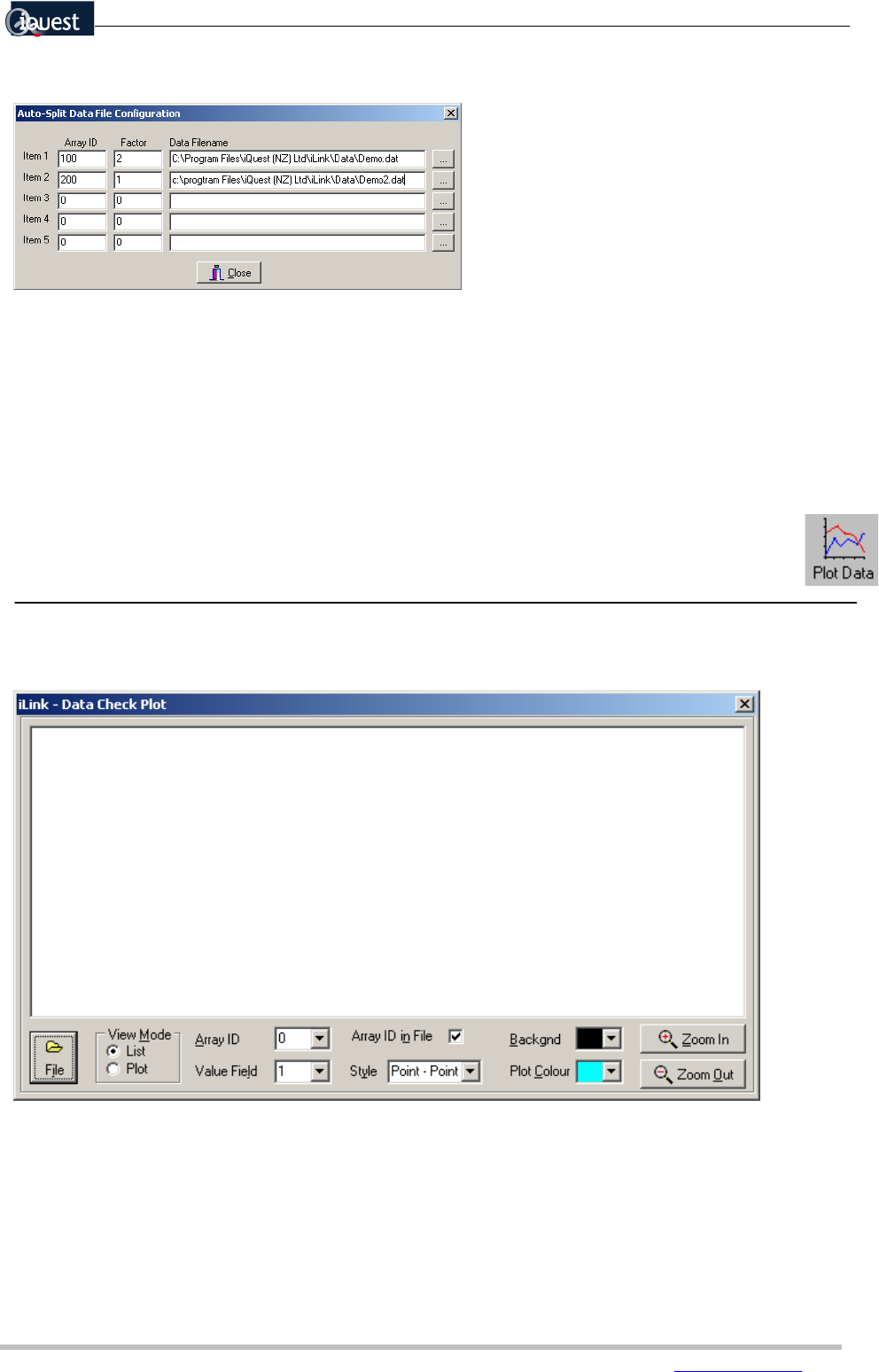

Auto-Split Data Arrays
This allows the data for up to five arrays to be automatically placed into separate files when the data is
unloaded. For each array, the following information needs to be specified:
Array ID: The array ID for which values are to be placed in the file.
Factor: The factor to apply to the logged value to obtain real engineering units in the outputted
data.
Data Filename: The name of the file where the data is to be saved.
5.2 Plotting Device Data
[View][Plot Data]
This window is used to do a simple check plot of the logged data from a device, or to list the raw data
samples.
