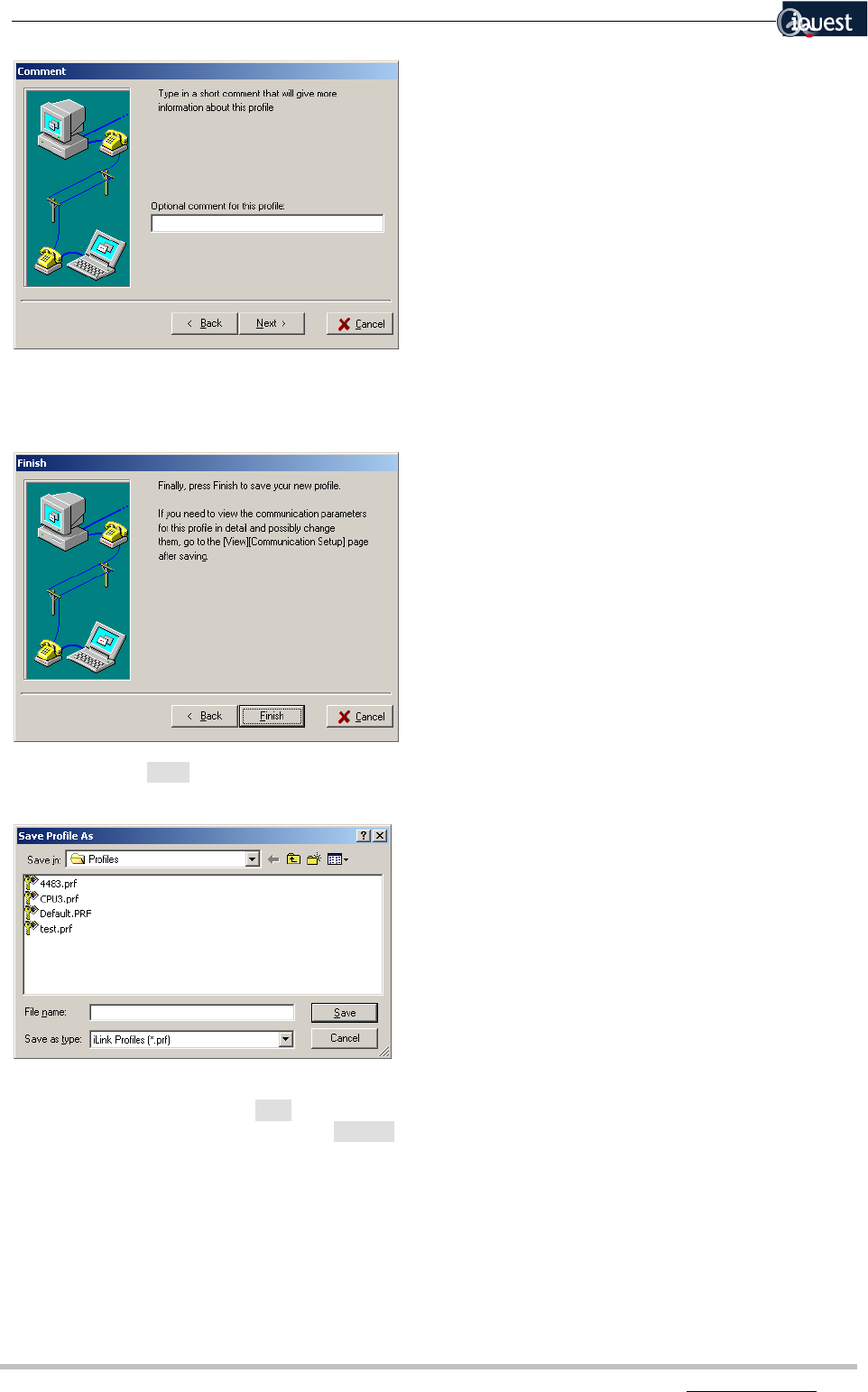

The comment field is optional, and can be used to assign a meaningful identifier to the profile, such as
‘DS-4483 over radio link’.
Finally, click on [Finish] to save the new profile.
Note that the selected folder is the default folder for profiles, /iLink/Profiles.
Enter a filename and click on [Save].
The profile is now saved. Click on the [Connect] icon on the toolbar, or select [File][Connect To Device] to
connect to the device.
If the connection is unsuccessful, run through the wizard again checking each setting.
If the connection still fails, check the communications settings directly by clicking the menu option
[Configuration][Communications].
