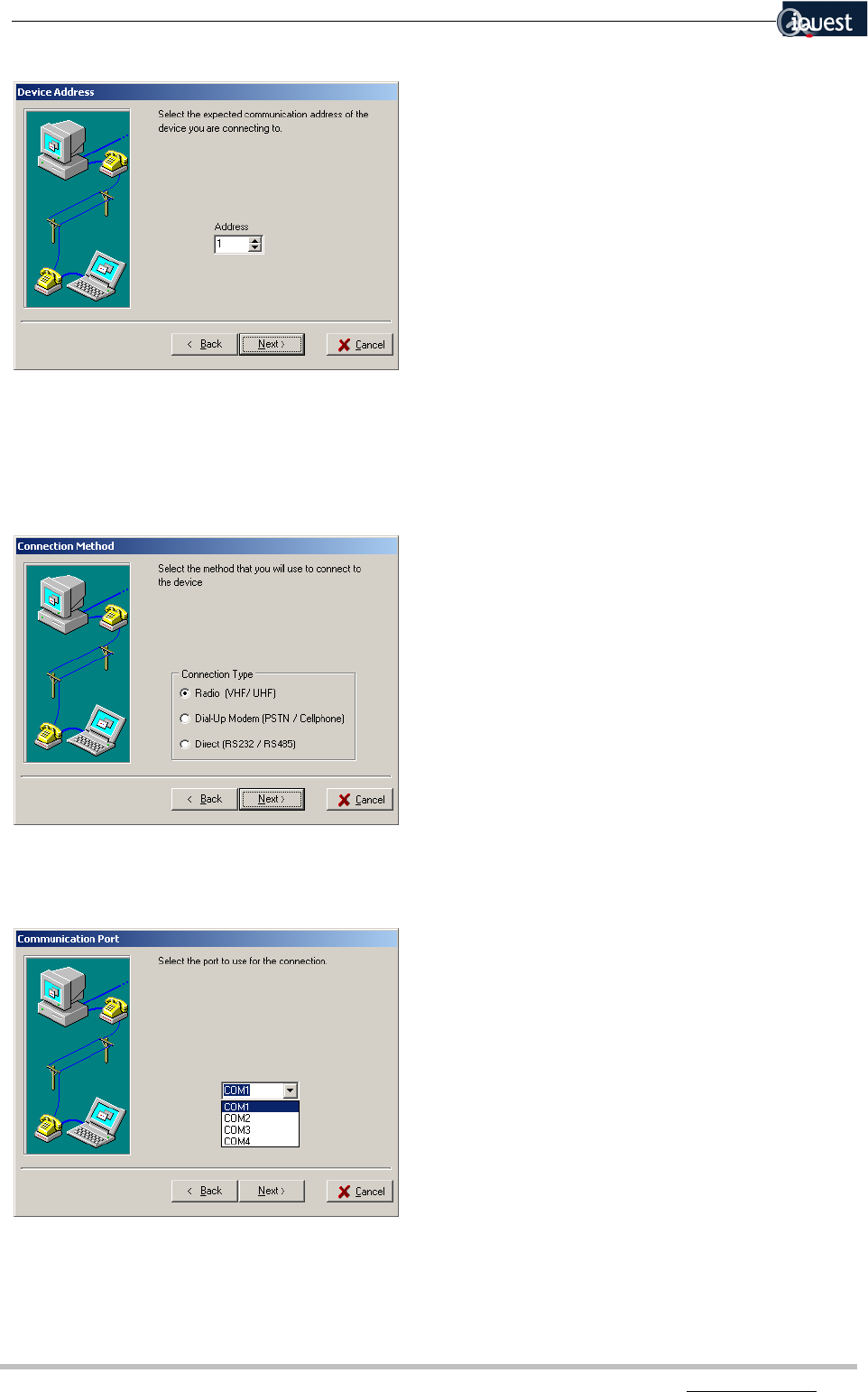

Enter the communication address of the device to which you intend to connect. If you do not know the
address of the device, use –3 (except for a DS-CPU3). This is a universal address and the device will
respond with its actual address on first communication. If the device is a DS-4483, you can obtain the
address from the logger itself, by viewing the LCD display.
Now select the connection method to be used with this profile:
Select the PC COM port that will be used for the connection. If the COM port is not listed you can
manually type in the port name e.g. COM25. This may be needed if communication is via a multi-port
serial expansion card.
