4 MANAGING PROFILES
4.1 Using the Wizard to Create a New Profile
[File][New Profile]

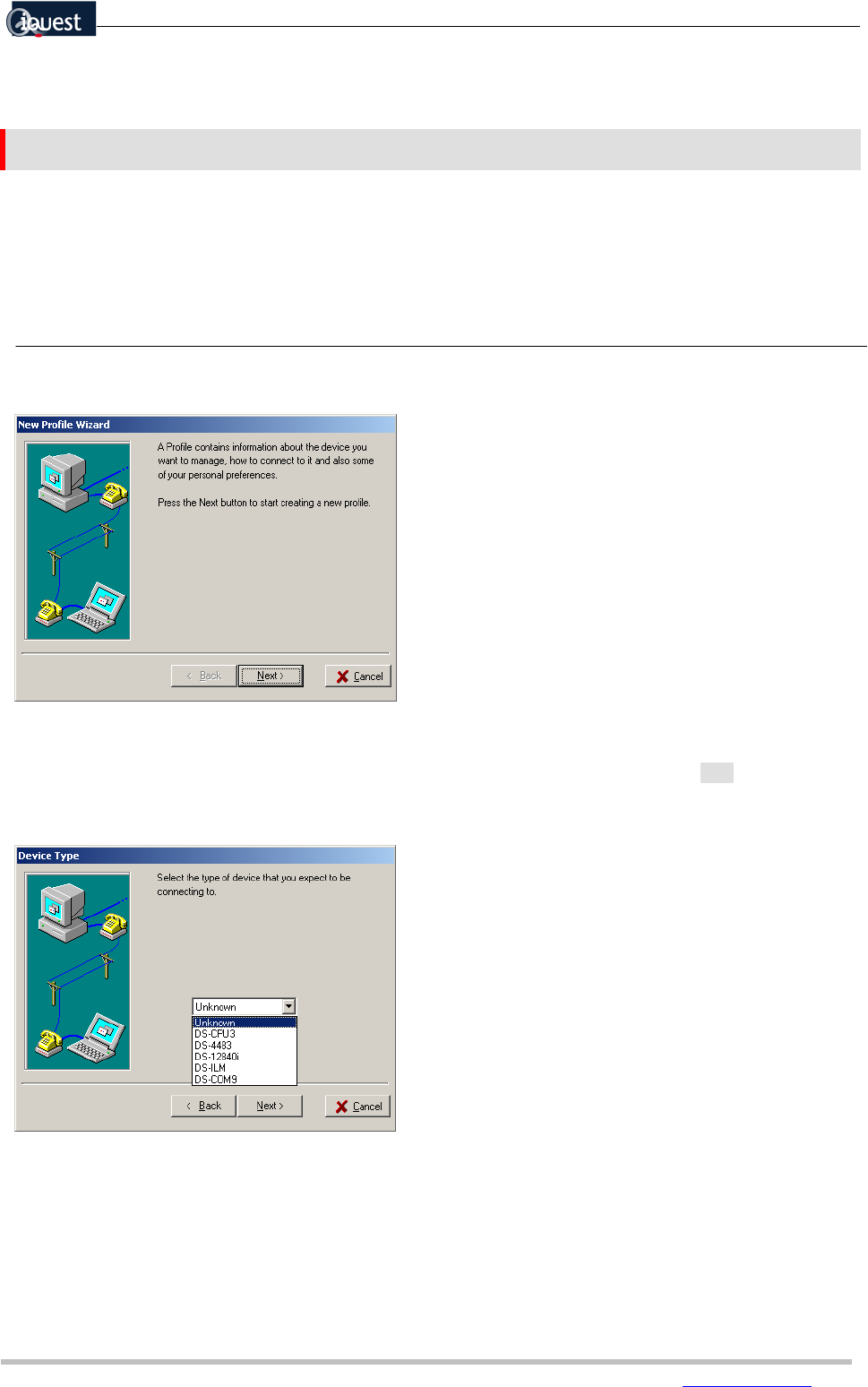

The New Profile Wizard will guide you through setting up a New Profile. Alternatively you can set up the
communications ([Configuration][Communications]) and save this as a profile. Click [Next] to begin using
the profile wizard.
Select the device you intend to connect to using this profile. If you are not sure of the device type, select
Unknown.
