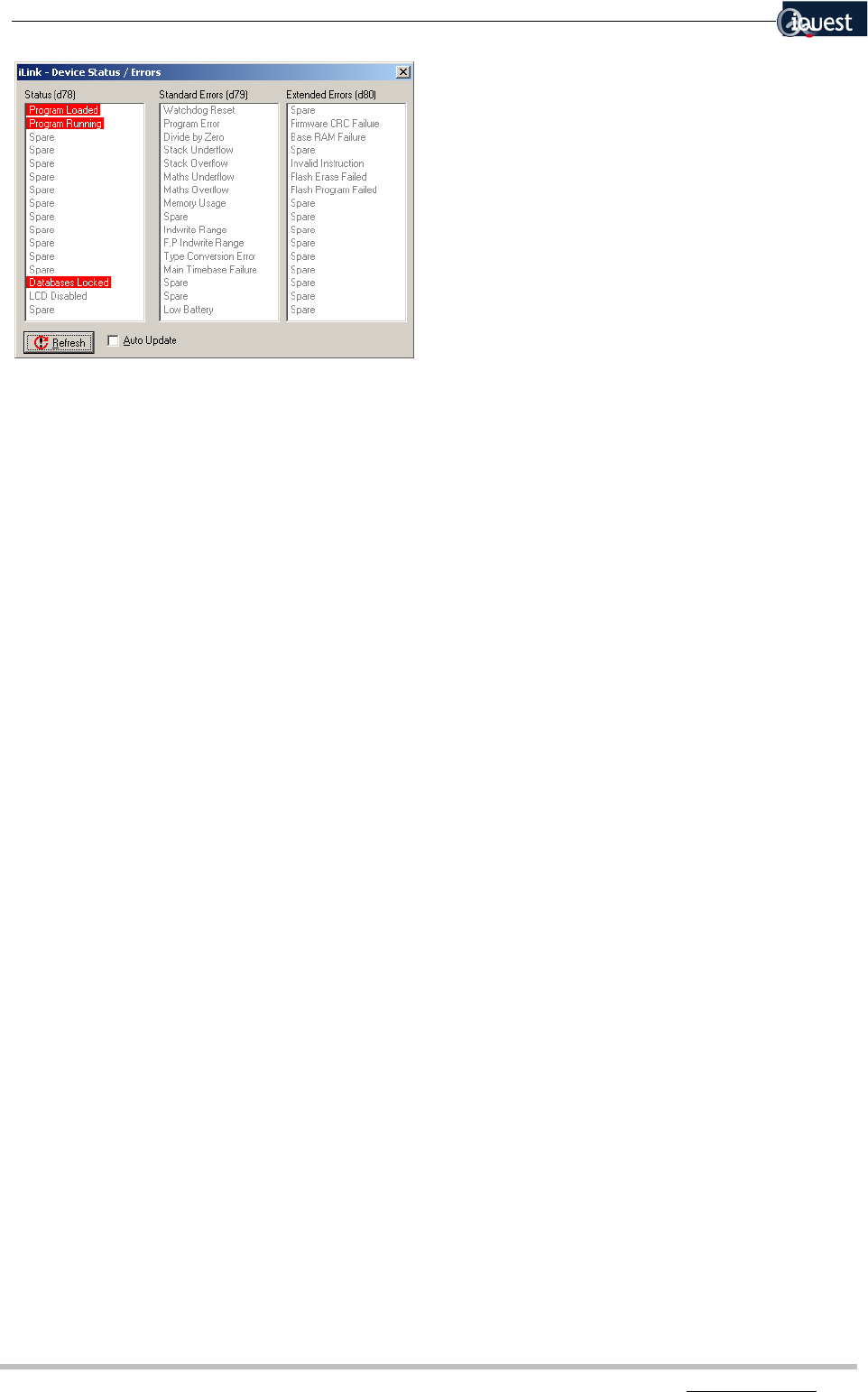

A red rectangle behind an entry in the status pane indicates that the respective function is active.
A red rectangle behind an entry either error pane indicates that the respective error has occurred since the
error flags were last reset.
In the example above, the status pane indicates that a program is loaded, the program is running and the
database is locked. The LCD is not disabled, as this flag is not highlighted in the pane. No errors have
been flagged since the device was last reset.
Clearing the Error Flags
[Clear]
Clicking this button will clear all the error flags. This is achieved by writing zeroes into addresses d79 and
d80. The same result can be achieved by writing these values directly into memory using the Integer
Database view.
Always
[Refresh] the display after clearing the error flags. Any persistent errors that are still present may
well be re-flagged when the display is refreshed, as this facility does not do anything with the errors
themselves – it merely resets the associated flags.
