3.2.2 Floating Point Database
[View][Databases etc][Floating Point]

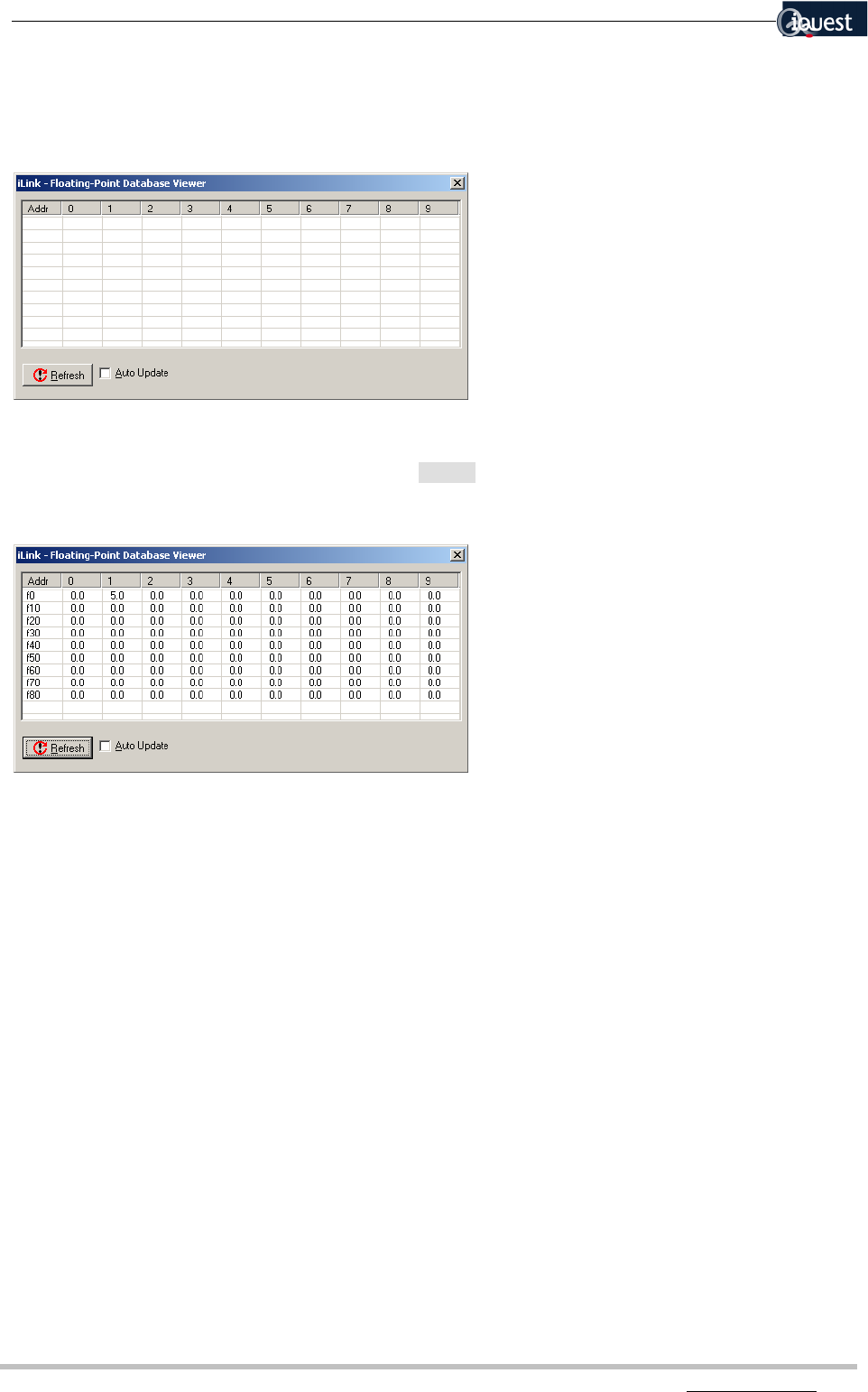

This view can be used to display the values stored in the floating-point database of the connected device.
When the window is first opened, the addresses and corresponding values will be empty. To retrieve the
current database values from the device, click on [Refresh]. This will instruct iLink to request the database
from the device and update the display. If Auto Update is checked, iLink will automatically refresh the
display every few seconds.
In the example above, there is only one value set, namely 5.0 at address f1.
The viewer is a read-only function used for debugging and fault-diagnosis and it is not possible to alter any
of the values listed.
3.2.3 Base Level Memory
[View][Databases etc][Base Level Memory]
