Basic Setup; Pump Control 1
This section will show and explain how a Connect
®
is configured as pump
controller for a wastewater pump station with 2 pumps.
The function “Pump Control 1” is used to control the pumps through the level
in the pumping sump.

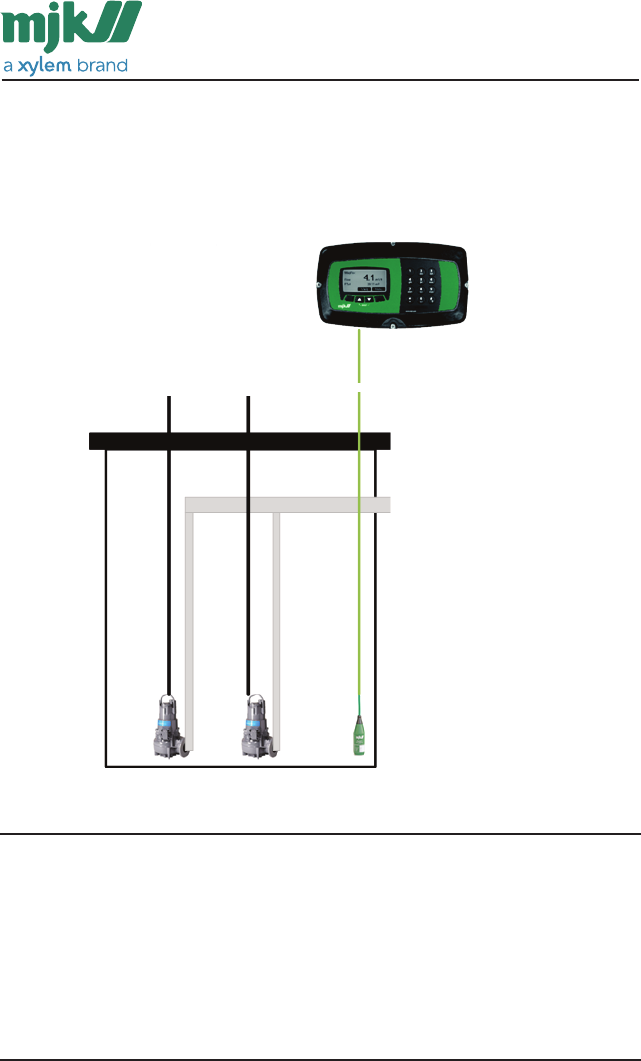

The picture shows an example on 2-pump station with 2 submerged pumps.
Signal List
First step is to create a signal list to create a full overview of the signal from
the pump controller to the pumps and from the pumps to the controller.
The following table shows examples from an typical pump station.
