Chapter 2 Features 17
Antenna
The antenna improves the reception of the optional Wireless Broadband adapter. You can
raise the antenna if your Wireless Broadband reception is poor.
To raise the antenna, insert your finger into the notch and lift up.
For information about using Wireless Broadband, see “Using Wireless Broadband” on
page 47.

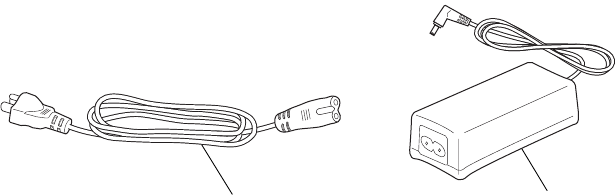

Power adapter
The power adapter provides power to the Tablet PC and charges the battery when it is in
the Tablet PC. The power adapter has the following components:
• Power cord
• Power adapter
WARNING: Use the Motion power adapter with your Motion Tablet PC only. Do not use the
adapter to power any other electronic devices.
Power adapterPower cord
