Paper Handling
3.5
3

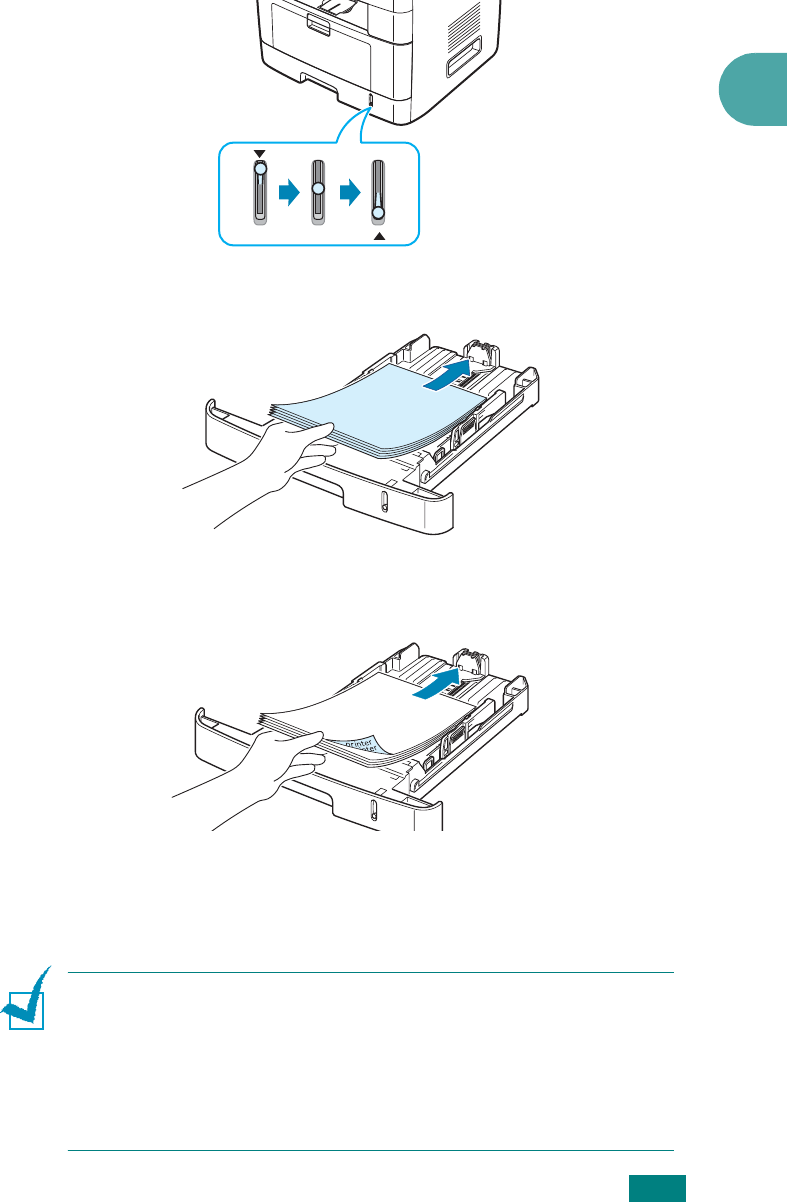

The paper level indicator on the front of the paper tray shows
the amount of paper currently left in the tray. When the tray is
empty, the indicator of the bar is completely lowered.
To load paper, pull open the paper tray and load paper with the
side to be printed on face down.
You can load letterhead paper with the design side face down.
The top edge of the sheet with the logo should be placed at the
front of the tray.
For details about loading paper in the paper tray, see “Loading
Paper” on page 2.7.
If you want to load a different sized paper, you need to adjust
the paper guides. For details, see page 2.9.
N
OTES
:
• If you experience problems with paper feed, place one sheet at a
time in the Bypass tray.
• You can load up to 150 sheets of previously printed paper. The
printed side should be facing up with an uncurled edge at the
front. If you experience problems with paper feed, turn the paper
around. Note that the print quality is not guaranteed.
Paper empty
Paper full
