Installing Machine Options
D.7
D
4

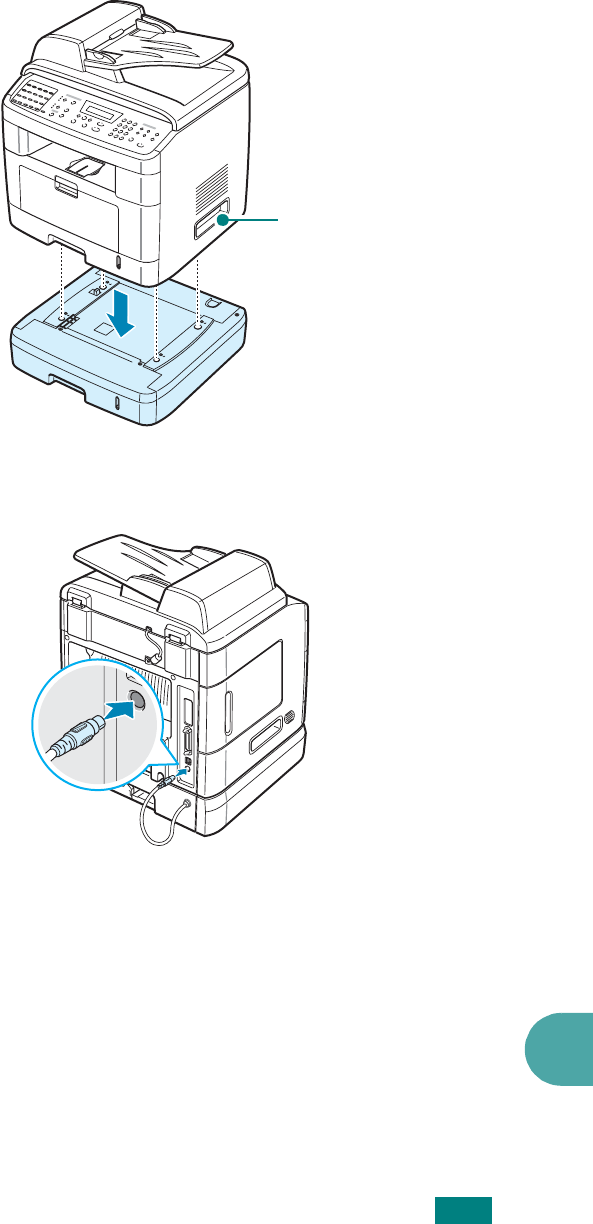

Place the machine over the tray, aligning the feet on the
machine with the positioners in the tray.
5
Plug the interface cable of the tray into the connector on the
back of the machine.
6
Load paper in the tray. The instructions for loading paper in
this tray are the same as for loading the standard paper
tray. See page 2.7.
7
After loading paper, you need to set the paper type and size
for Tray 2. See page 2.21.
8
Reconnect the power cord and cables and then turn the
machine on.
Lifting handles are
located at the lower
edge of both sides of
the machine.
