Maintenance
8.14
3

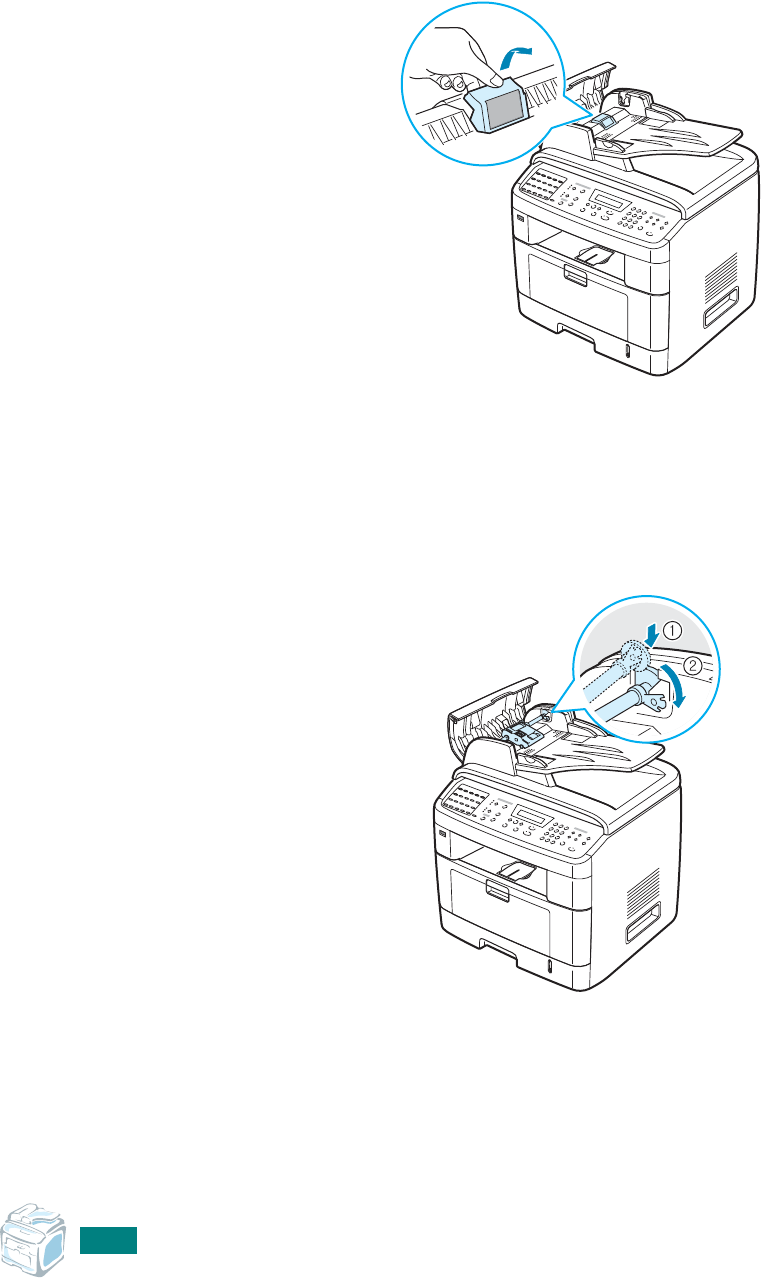

Remove the ADF rubber pad from the ADF, as shown.
4
Insert a new ADF rubber pad into place.
5
Align the left end of the ADF roller with the slot and push
the right end of the ADF roller into the right slot (
c
).
Rotate the bushing on the right end of the roller toward the
document input tray (
d
).
6
Close the ADF cover
