Printer Components—Internal
Figure 2–4 shows how the C55 printer’s internal components are arranged.
Two important groups of internal components of your printer are the
Consumables (replenishable substances used by the printer) and
Maintenance Items (the parts that require replacement). See the insert to
order these items.

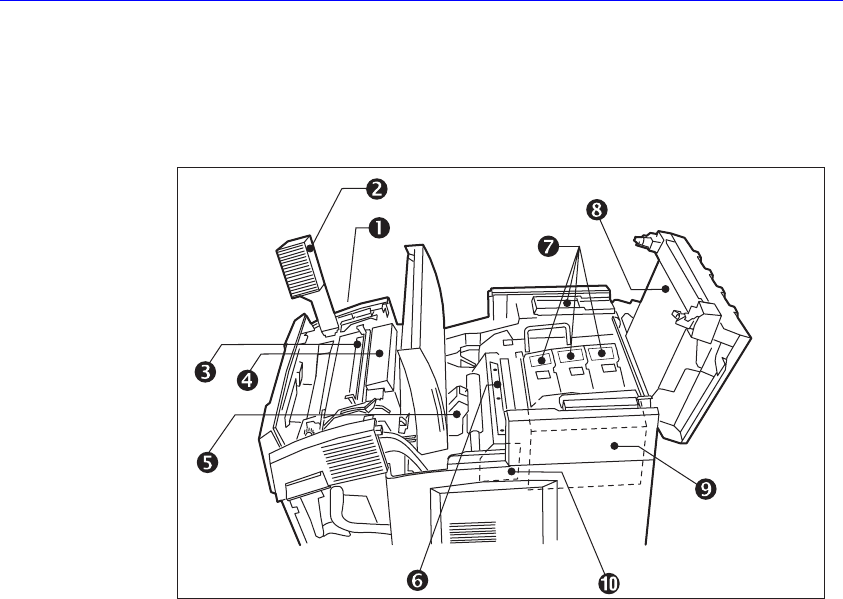

Figure 2–4: The C55 Printer, Internal View of Components
Fuser Area Print Drum
Ozone Filter Black/Color Toner Refill Doors
Fuser Cleaner Roller Serial Number Plate
Fuser Oil Bottle Color Developer Unit
Toner Collector Black Developer Unit
