2-10 I N T R O D U C T I O N T O Y O U R C 5 5 P R I N T E R
Your printer interface connectors are located on the back of the printer as
shown in Figure 2-3 below. Your printer comes equipped with a standard
mini-Centronics parallel connector. In addition, space is provided for an
optional Serial/LocalTalk card and one Network Interface card (either
Ethernet or Token Ring). Note: the Ethernet card comes standard with a
C55mp.

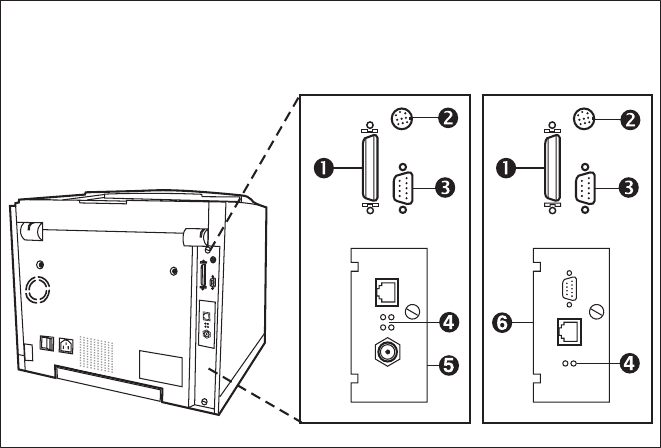

Figure 2–3: The Connection Interface Area
Parallel Port Network Activity LEDs
LocalTalk Connector Ethernet Connectors
RS232 Serial Connector Token Ring Connector
