Chapter 2 Printer Overview

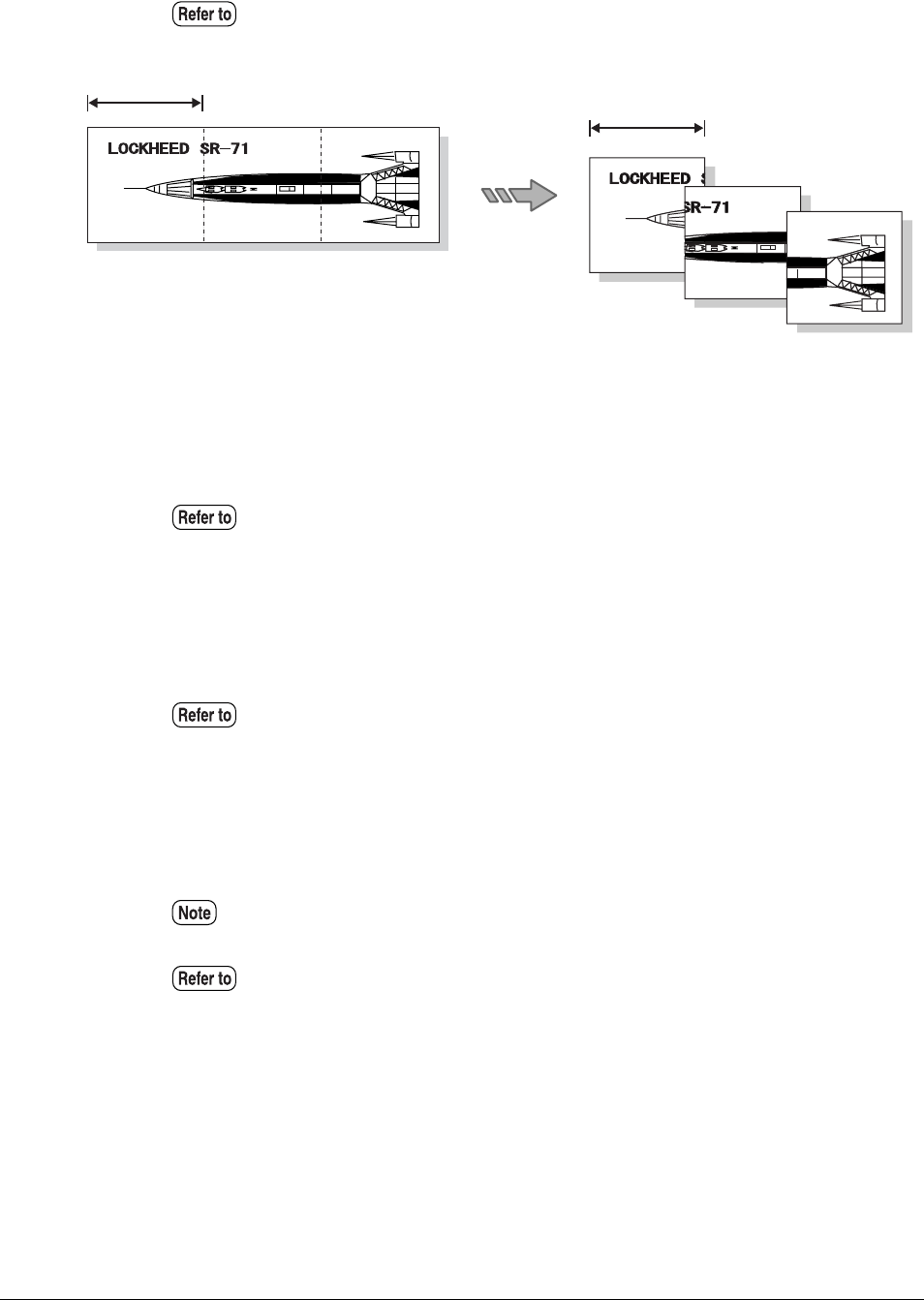

Split Drawing (Image Fragmentation)
Long images (those that exceed 1,189 mm in length) may be split into several
parts and printed. Positioning marks can be added to the split prints for
positioning purposes.
Printing the Output Time
The date and time a document is printed can be added to the edge of the
document.
Log Management
It is possible to print out a log of completed print jobs, an error log, and other
information.
Reprinting
The most recently printed document can be reprinted. The print quantity also
can be specified.
Refer to "Split Drawing" in "4.3 Logical Printer Print Settings" for more details.
Refer to the "Message Option" section of "4.3 Logical Printer Print Settings"
for details on available functions.
Refer to " Manage the Job and Error Logs" for details on printer control panel
operations.
Reprinting is not possible with the Xerox 6030 WF or Xerox 6050 WF if a copy
job is performed after the print operation.
Refer to "5.6 Reprinting (6030/6050 only)" for details on available functions.
1/3
Fragment
Fragment
2/3
3/3
