36
Chapter 2 Printer Overview
Print Service Operations
The printer control panel and Print Services on Web are the two main features
that enable users to set up and perform print service operations.

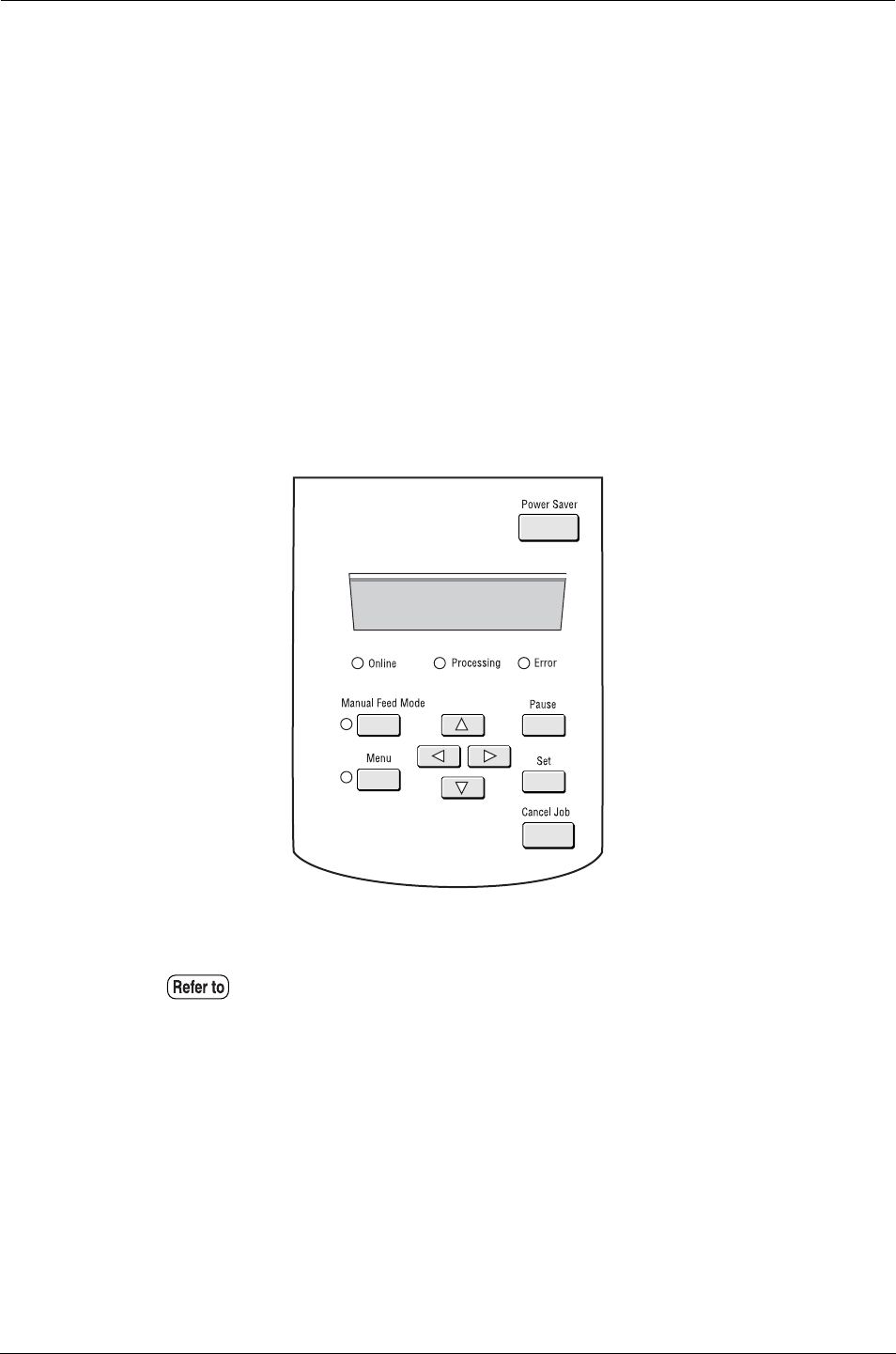

Printer Control Panel
The printer control panel can be used to perform a variety of tasks, among them:
• media setup for roll media and the MSI (Multi Sheet Inserter/Manual Feed
Tray)
• communication (port) setup
• system parameter setup
• printing of test patterns to verify printer operation
• job log and error log management
• reprinting of the most recent print job (6030/6050 only)
• displaying billing meter information
Refer to "2.2 Printer Control Panel Usage" for more details on the printer
control panel and its usage.
