1.10 Loading Media for Manual Feeding
1.10
Loading Media for Manual Feeding

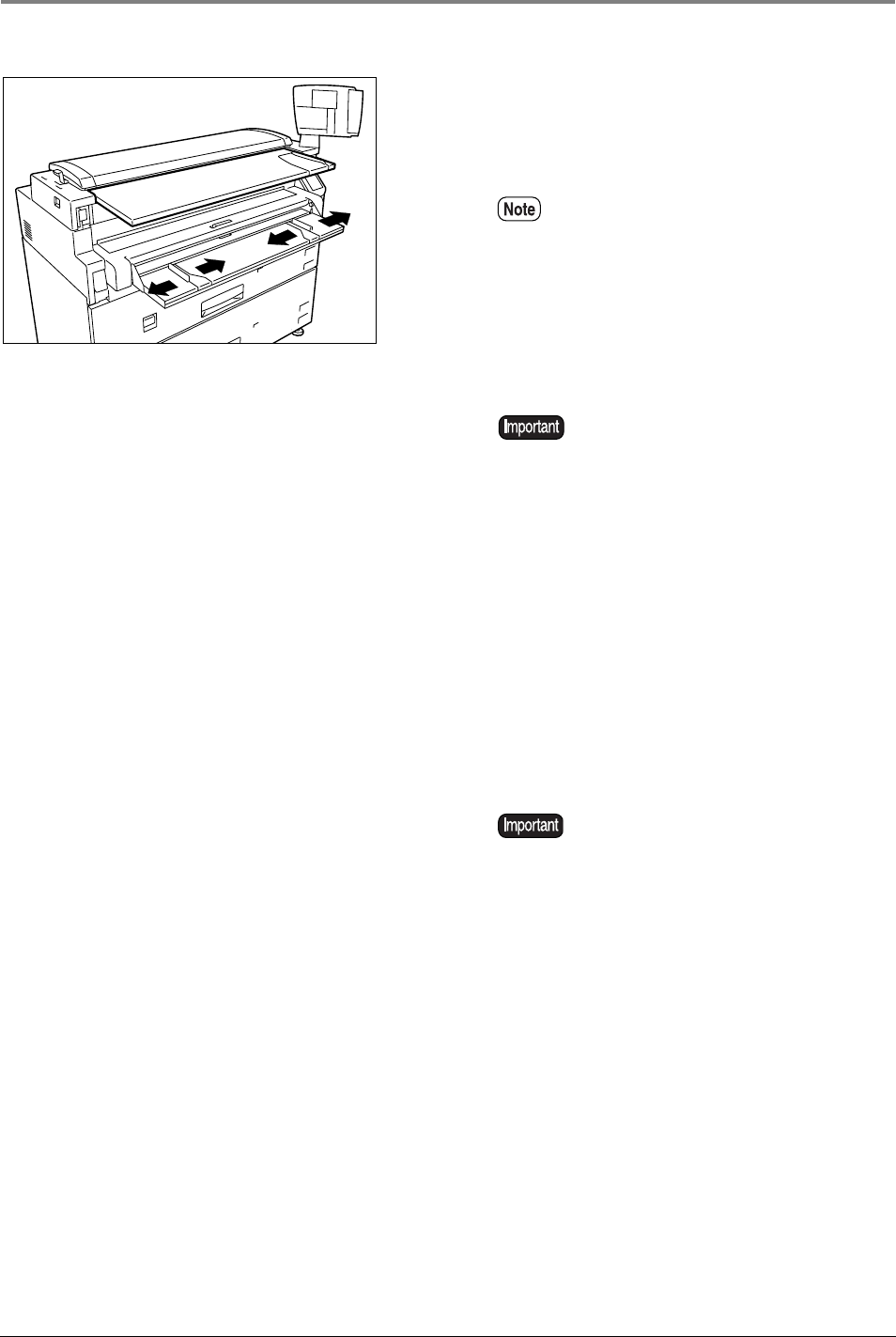

1 Adjust the (MSI) Multi Sheet Inserter/
Manual Feed Unit's side guides to fit the
size of the media that is to be printed.
2 Place the side of the media to be printed
face up, and align it with the (MSI) Multi
Sheet Inserter/Manual Feed Unit's side
guides.
3 Push the front edge of the media as far into
the machine as it will go. You will hear the
sound of a motor as the machine lifts the
media to the feed position.
4 Make the required media settings on the copier control panel.
Set the correct media series for the
manual feed sheet.
• The optional (MSI) Multi Sheet
Inserter/Manual Feed Unit is
required when making manually fed
copies.
• Standard paper having a width of
297 to 914 mm and a length of 210
to 2,000 mm can be used with the
(MSI) Multi Sheet Inserter/Manual
Feed Unit.
Two or more sheets of A3 (horizontal
feed) and A4 (horizontal/vertical feed)
size paper can be placed in the MSI.
Paper sizes other than A3 (horizontal
feed) and A4 (horizontal/vertical feed)
sizes must be inserted one sheet at a
time.
Only Bond paper can be used in the
(MSI) Multi Sheet Inserter/Manual
Feed Unit.
