1.8 Loading Roll Media
1.8
Loading Roll Media
The message ‘Replace xxx media." will display when there is no media loaded
or when the roll in use runs out.
The media size displayed on the control panel will turn off when there is no
media in the machine.
Two rolls of media can be loaded in each of the media trays.
Procedure

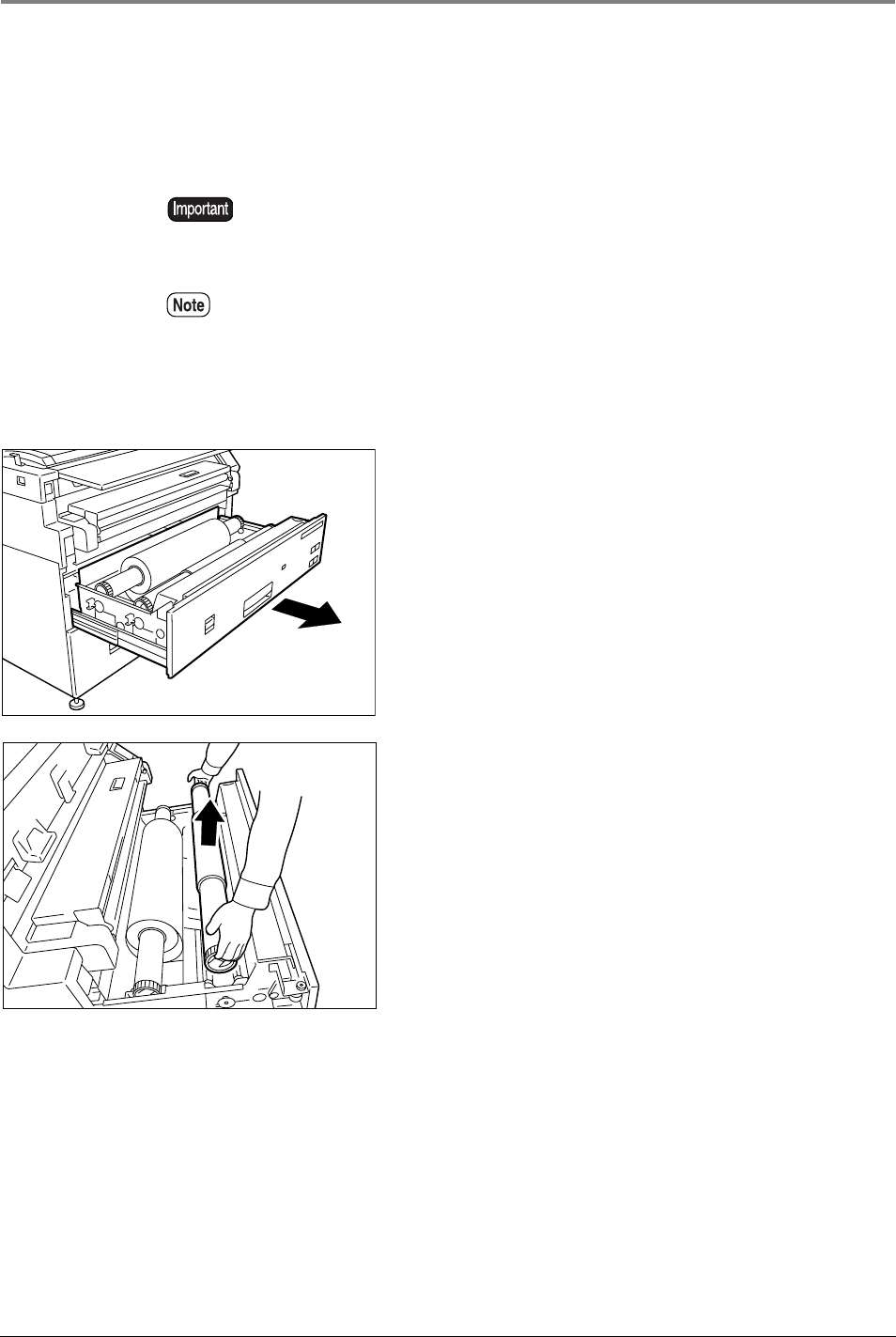

1 Open the media tray.
2 Remove the shaft containing the roll paper
that is to be replaced.
Refer to the instructions provided in " Setting Up Media" and set up the media
parameters after the roll media has been loaded.
Media can be reloaded in the lower media tray while printing is occurring from
the upper media tray. Be sure that the Feeder LED on the lower media tray is
off (not illuminated) before opening the lower media tray.
