4
1.2
Major Components

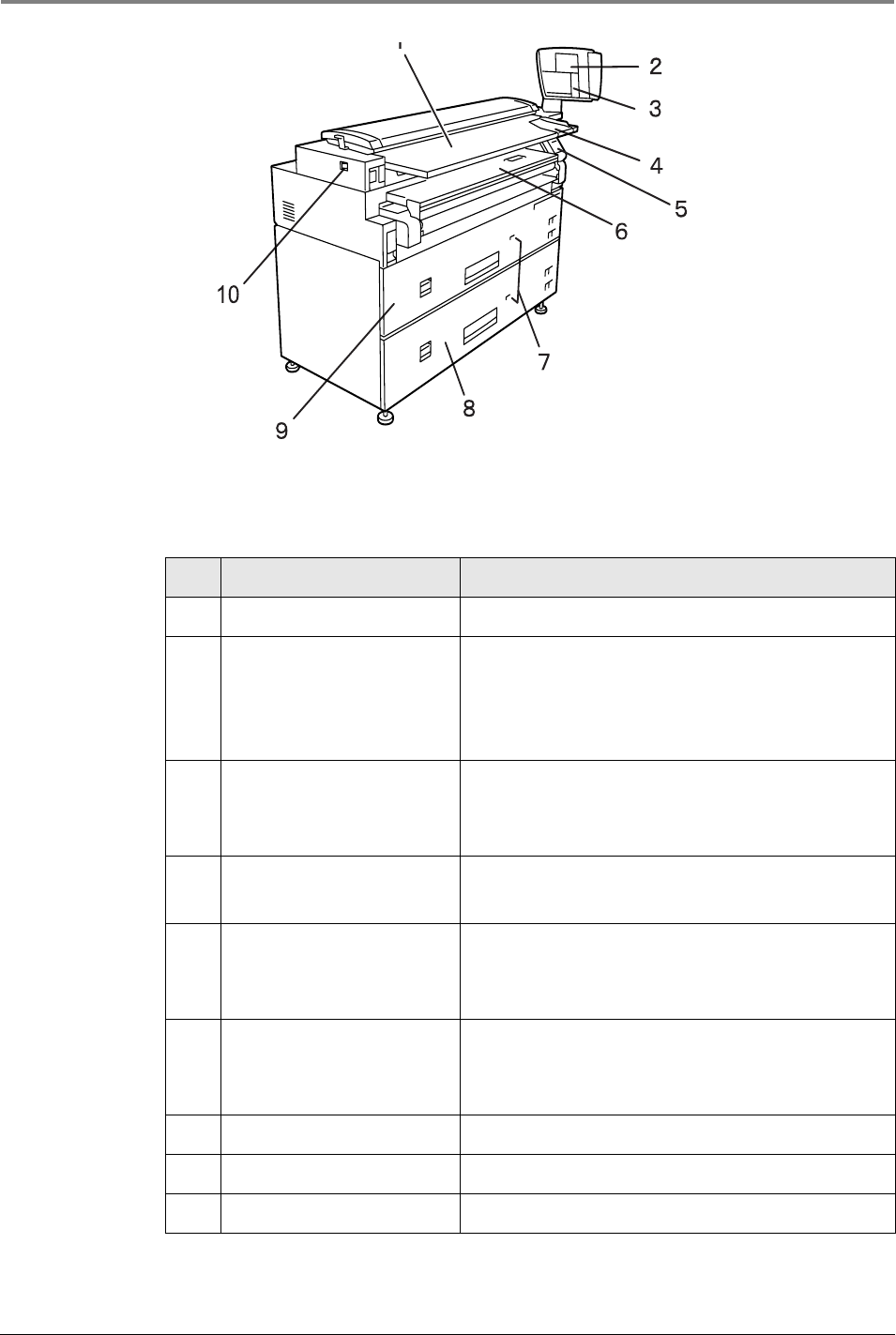

Major Components: Front
( *6030/6050 Copier/Printer only )
Name Function
*1 Document table Documents to be scanned are inserted here.
*2 Setup screen
(touch screen)
Used to set up copy jobs, map originals to the
installed media, display messages and
procedures, and provide troubleshooting
help, e.g., for jam clearance.
*3 Control panel Contains a numeric keypad, Start/Stop
buttons, and selection buttons for copy
setups.
*4 Document insertion
guide
Helps the user align the edge of a document
when feeding it into the scanner.
5 Printer control panel Used to change the media size and type, set
up printing and communication parameters,
etc.
6 MSI*/Manual Feed Unit
(*Multi Sheet Inserter)
(optional)
Used for printing or copying on cut sheet
media.
7 Feeder LED Illuminates red when the media tray is in use.
8 Media tray (6050 only) A dual-roll media tray that feeds roll paper.
9 Media tray (Standard) A dual-roll media tray that feeds roll paper.
