8.4 Printer Troubleshooting

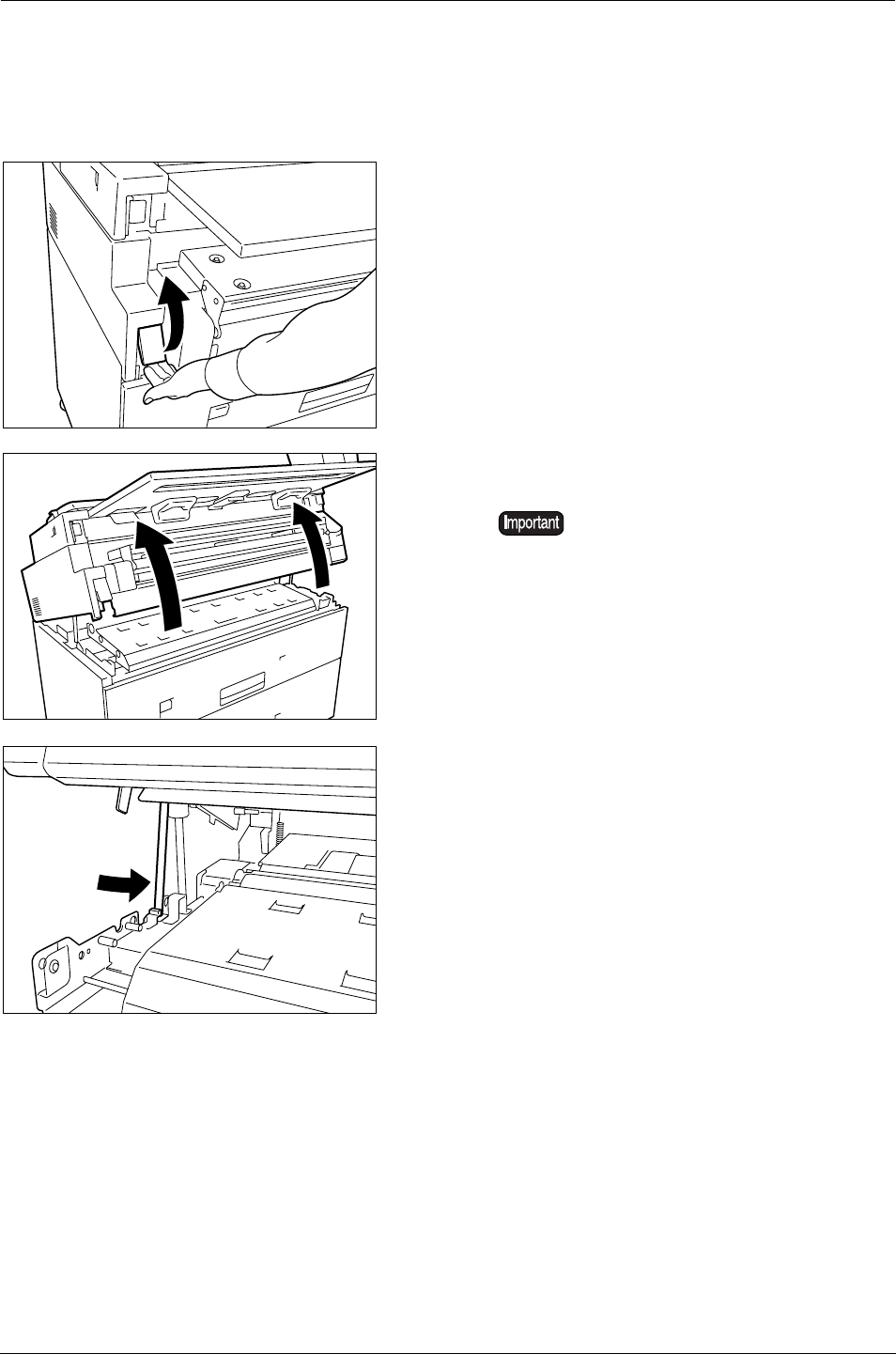

Jams in the Printer and Ejection Port
Remove media jams from the printer and ejection port following the instructions
below.
Procedure
1 Lift up the lever located on the left-hand
side of the output unit.
2 Use both hands to lift up the top of the unit.
3 Check to determine if the green stopper is
located toward the back of the unit.
Push it to the back if it is located at the front.
The top of the unit cannot be lifted if
the scanner's lock has been released.
Lock the scanner before attempting
this procedure.
