Chapter 4 Logical Printer Setup and Operation (6030/6050 only)
Changing Output Roll Media for an Entire Job
By setting the [Output Option] [Size] selection to [AUTO], the output media is
determined by the settings in the logical printer's [Media mapping] table. If a
media mapping table is prepared for each job, the output roll media can be
changed for each job.

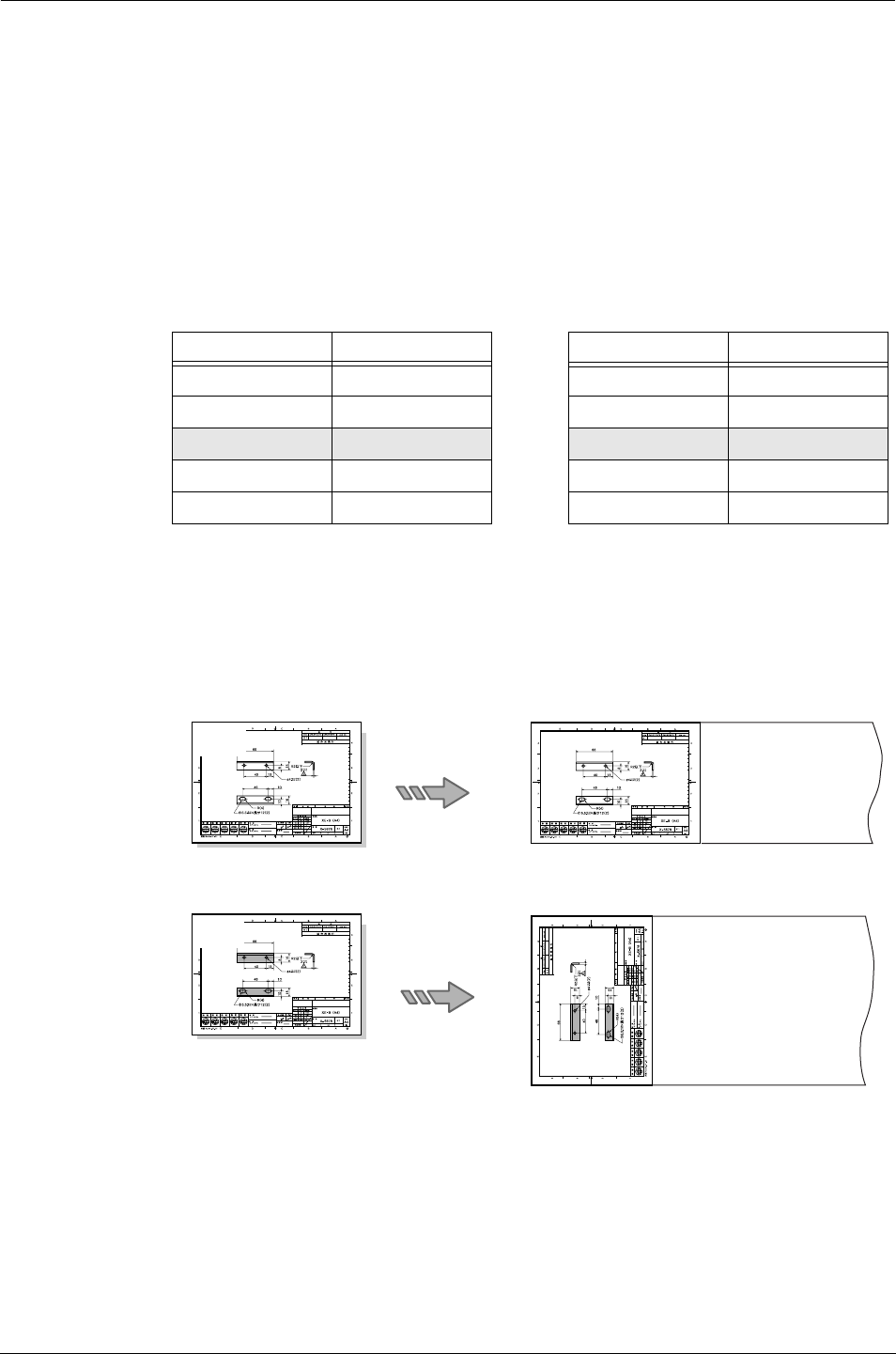

For example, if an A1 roll and an A2 roll are loaded in the machine, and the A2
roll is to be used for printing the A2 size (Job1) job, and the A1 roll media to be
used for printing (Job2), which is also in A2 size, the mapping table is set up as
follows.
In this example, (Job1) is specified to use logical printer [PLT01H], which will
output the job on the A2 roll media.
(Job2) is specified to use logical printer [PLT02H] and rotate the job 90 degrees
to print on the A1 roll media.
[PLT02H] logical printer settings
[PLT01H] logical printer settings
Image Size Media Size
A0 A0
A1 A1
A2 A1
A3 A3
A4 A3
Image Size Media Size
A0 A0
A1 A1
A2 A2
A3 A3
A4 A4
Job2
Job1
A2
A2
Logical printer
[PLT01H] specified
Logical printer
[PLT02H] specified
Rotated by
90 degrees
Output on the
A2 roll media
Output on the
A1 roll media
