Chapter 4 Logical Printer Setup and Operation (6030/6050 only)

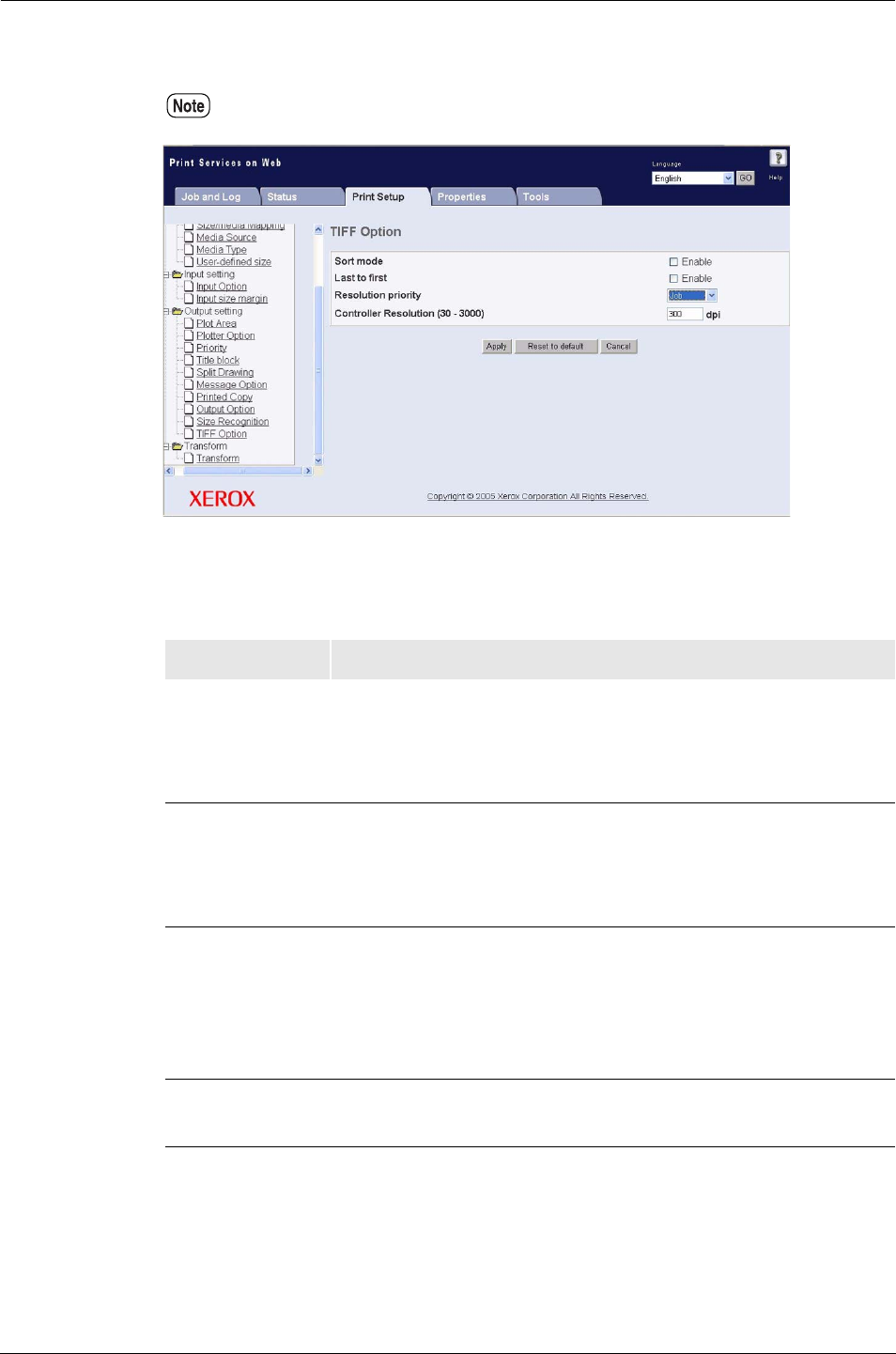

TIFF Option
Sets up the sorting and output sequence, and the resolution priority for TIFF
data.
Settings
The settings for this function are as follows.
These settings are only valid with TIFF data.
Menu Item Description
Sort mode Determines whether or not to sort the output data.
The default setting is [DISABLE].
[ENABLE] Sorted.
[DISABLE] Not sorted.
Last to first Determines whether or not to print in the reverse order.
The default setting is [DISABLE].
[ENABLE] Prints in the reverse order.
[DISABLE] Prints in the normal order.
Resolution
priority
Sets the resolution priority.
The default settings is [JOB].
[JOB] Uses the resolution embedded in the TIFF
data.
[CONTROLLER]Uses the resolution set here.
Controller
Resolution
Sets the resolution within a range of 30 to 3000 (dpi) when
the [CONTROLLER] parameter has been specified.
