Chapter 4 Logical Printer Setup and Operation (6030/6050 only)
Size Recognition
Size recognition determines whether images that are less that an A0 size in
length
(1,189 mm), but that are larger than a standard size, will be printed on media
that is one size larger, or on standard size that has been increased in length.
This setting is useful when all images will be printed on the same standard size
media or on a standard size that has been increased in length.

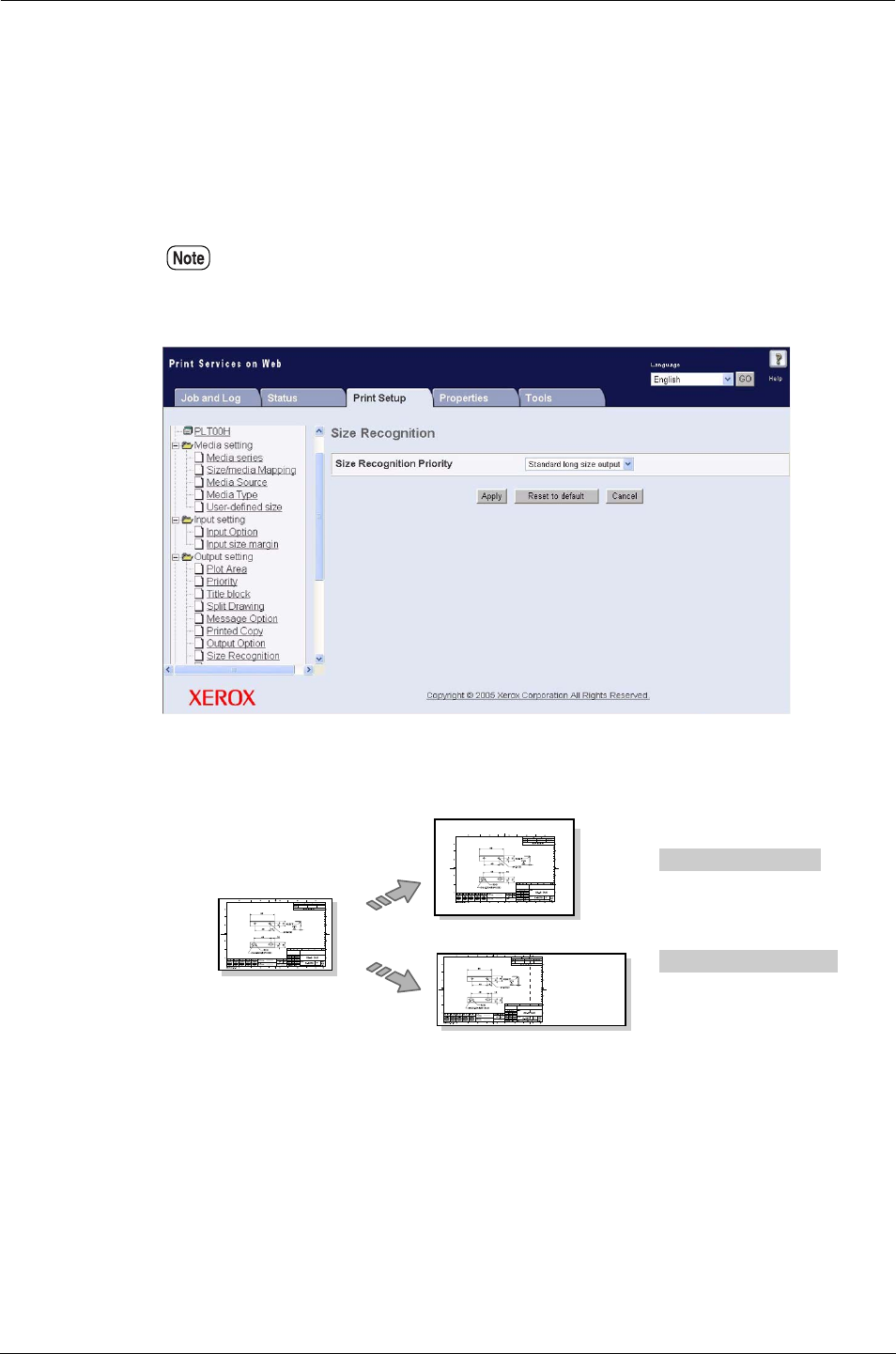

Settings
This setting is only valid when the [Paper Size] selection for [Output Option] is
set to [MIX].
In the case of an input image that
is longer than the standard size
(example: 420 × 650mm)
Output image
Standard shape priority
Output on the standard size
(example A1: 594 × 841mm)
Increased standard shape
Output on the standard size
increased in a multiple of
integers
(example 2A2: 420
× 1,188mm)
