4.3 Logical Printer Print Settings

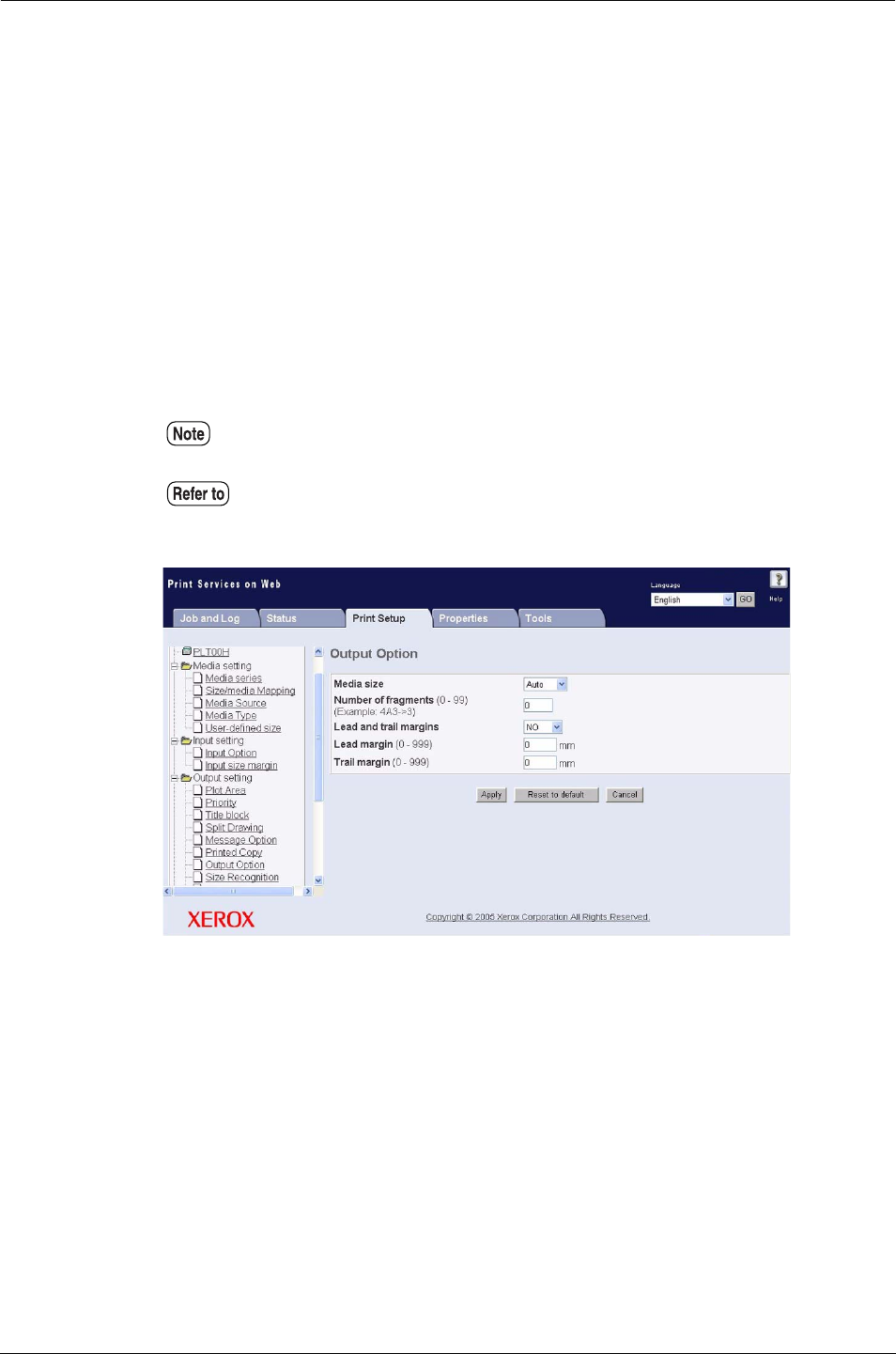

Output Option
Sets up the output size. The following two judgment methods are available for
output image size.
• Automatic (AUTO, OTHER, MIX, MIX2)
Determines the most suitable output size based on the input size and the size
mapping table. It also determines the roll media size to use based on the output
size and the media mapping table (or automatically.)
• Specify Size
Enables the media size of the input image to be entered directly. The media size
can be selected from standard sizes and user-defined sizes.
This is usually set to [AUTO]. However, it is possible to specify the media size if
the same size will be used for all jobs.
The image will be enlarged or reduced if the input size and output media size are
different.
The image will not be enlarged or reduced if the [Auto Scale] selection has
been set to [NO] for the [Transform] function.
Refer to "Size/Media Mapping" for more information about size and media
mapping.
