Chapter 4 Logical Printer Setup and Operation (6030/6050 only)
Split Drawing
When an image exceeds 1,189mm in length, it can be split (fragmented) and
printed in sections. This function also enables you to add positioning marks on
each split section. A maximum of 30 such sections is possible.

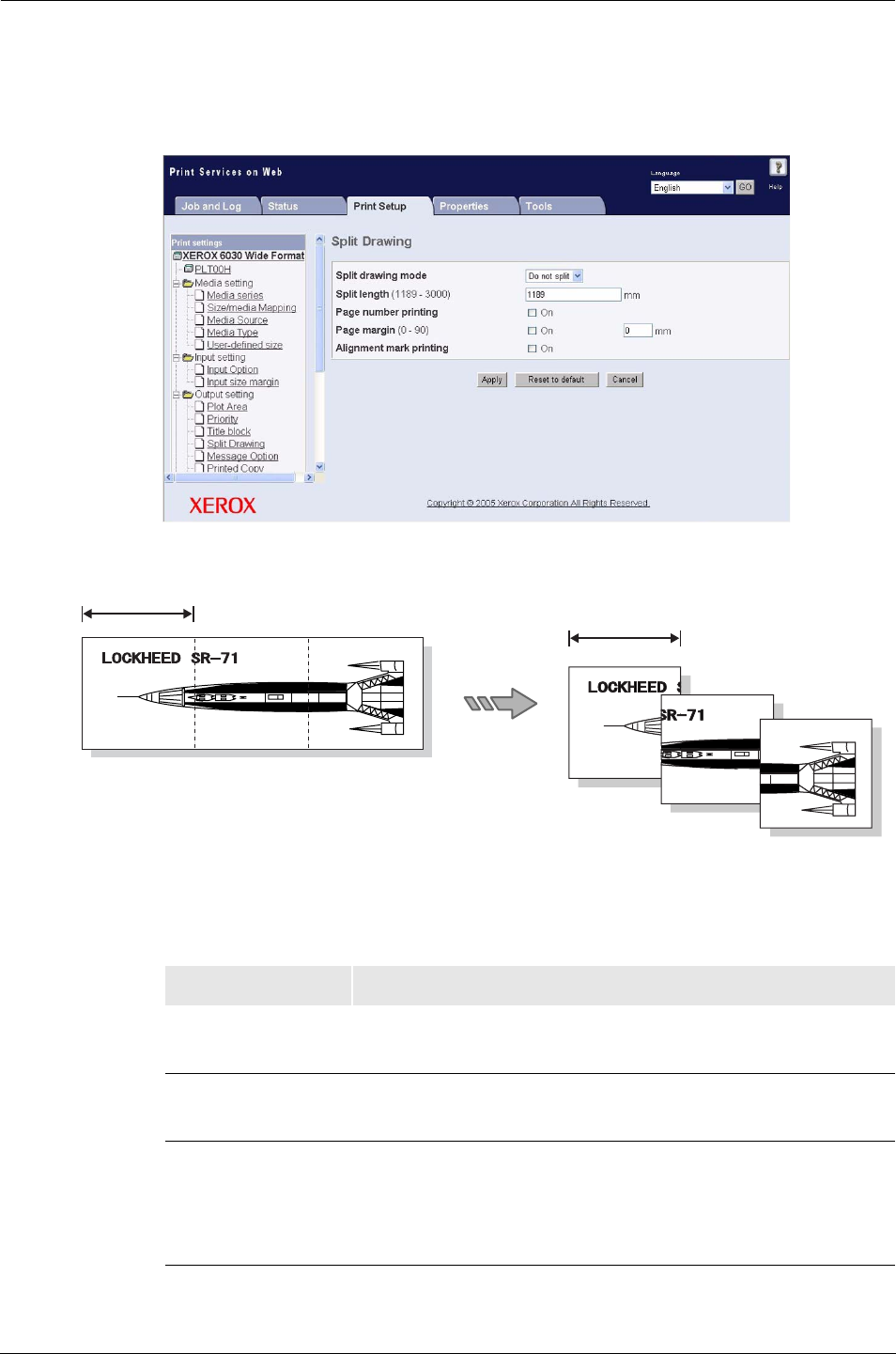

Settings The settings for Split Drawing are as follows.
Item Description
Split drawing
mode
Set to either [Do not split] or [Split].
The default setting is [Do not split].
Split length Sets the print length within a range of 1,189 to 3,000 mm.
The default settings is [1,189 mm].
Page number
printing
Determines whether or not a page number will be printed.
The page number will be printed in the format [present
page number:total number of pages].
The default setting is [Off].
1/3
2/3
3/3
Fragment
length
Fragment
length
