4.3 Logical Printer Print Settings

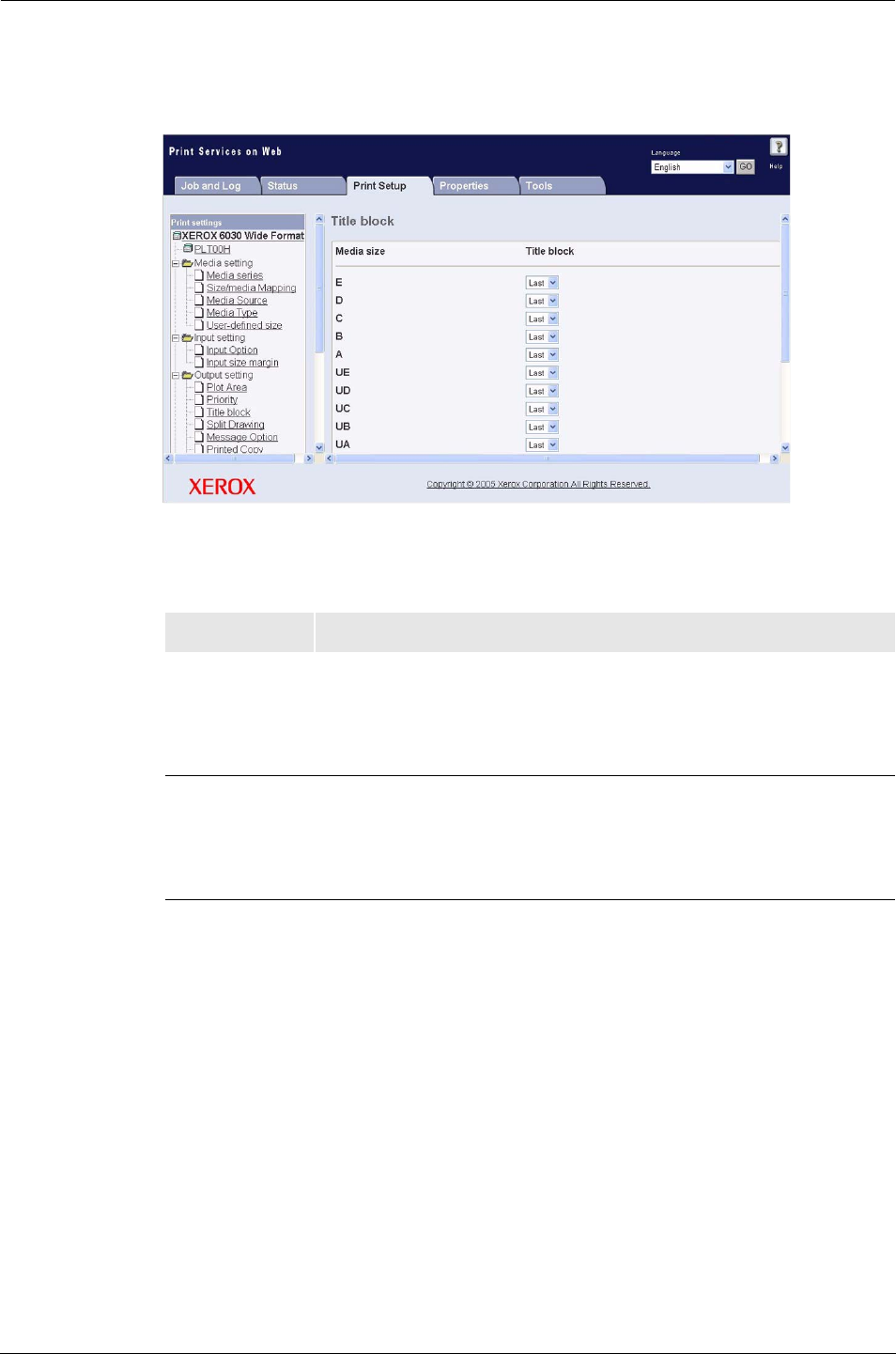

Title Block
The setting determines whether or not to rotate images 180 degrees. This
setting is used to change the image orientation to ensure correct folding.
Settings
The available settings are as follows.
Menu Item Description
Media Size Determines whether or not to rotate images for each media
size.
Displays the media sizes that are selected in [Output size]
under [Media series].
Title Block The setting determines whether or not images will be rotated.
The default setting is [Last].
[Last] Does not rotate images.
[First] Rotates images 180 degrees.
