Chapter 4 Logical Printer Setup and Operation (6030/6050 only)
User-Defined Size
The user-defined sizes are used for printing long images and non-standard size
media.
User-defined sizes can be specified for each standard size. It is possible to
uniformly output all images that exceed the standard sizes but are within the
specified user-defined sizes.

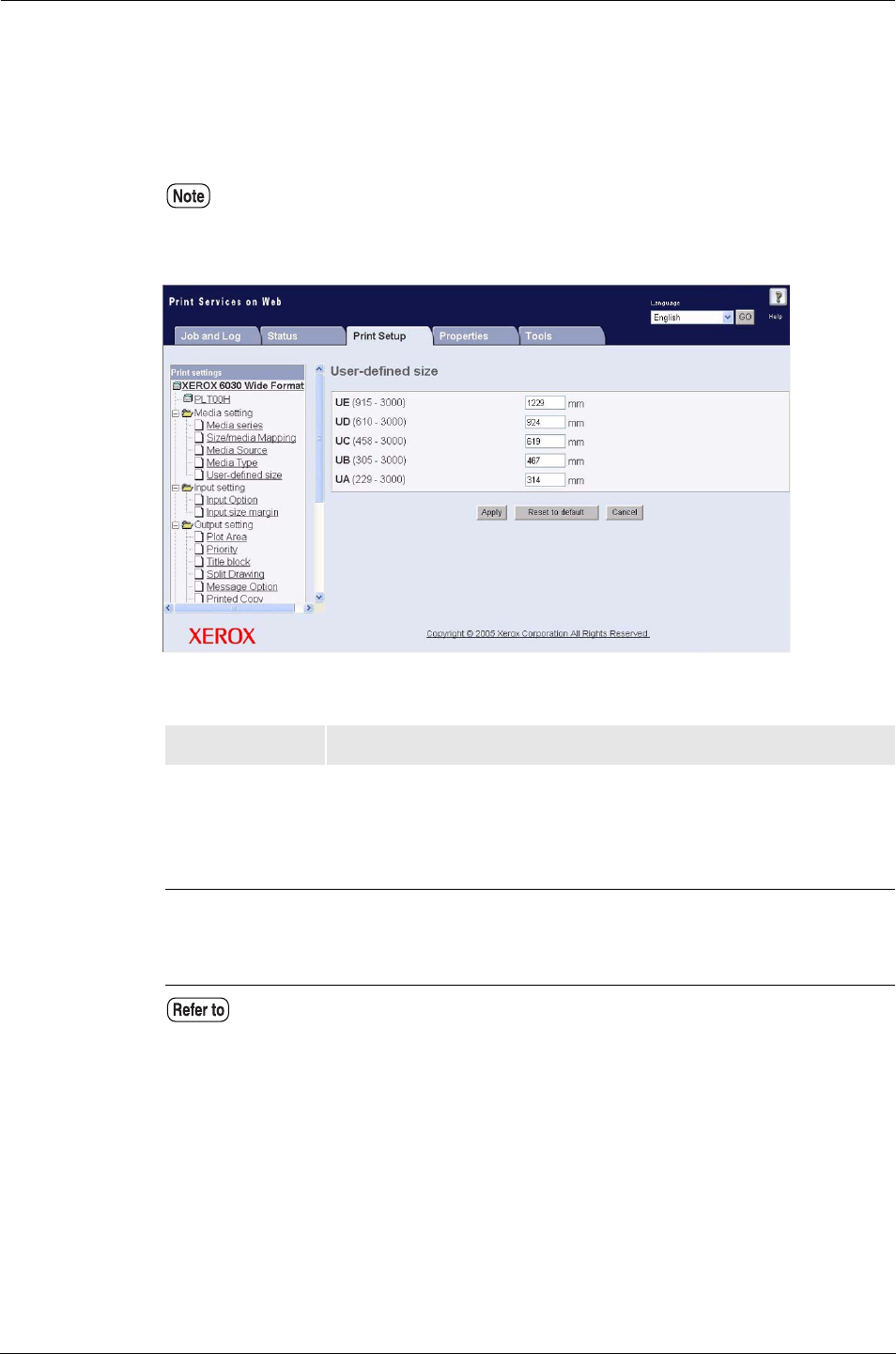

Settings The settings for this function are as follows.
The user-defined sizes are only valid when the [Paper Size] selection on
[Output Option] is set to [AUTO].
Menu Item Description
Media Name
(fixed)
The name of the media with the user-defined size.
The media name will differ based on the [Input size]
parameter which is set up for the Media series. Refer to the
table on the following page.
Length Sets up the length of the user-defined media. Refer to the
table on the following page for the range in which the sizes
can be set.
Refer to the section on "Media Series" for further details on paper groups.
