4.3 Logical Printer Print Settings
Example

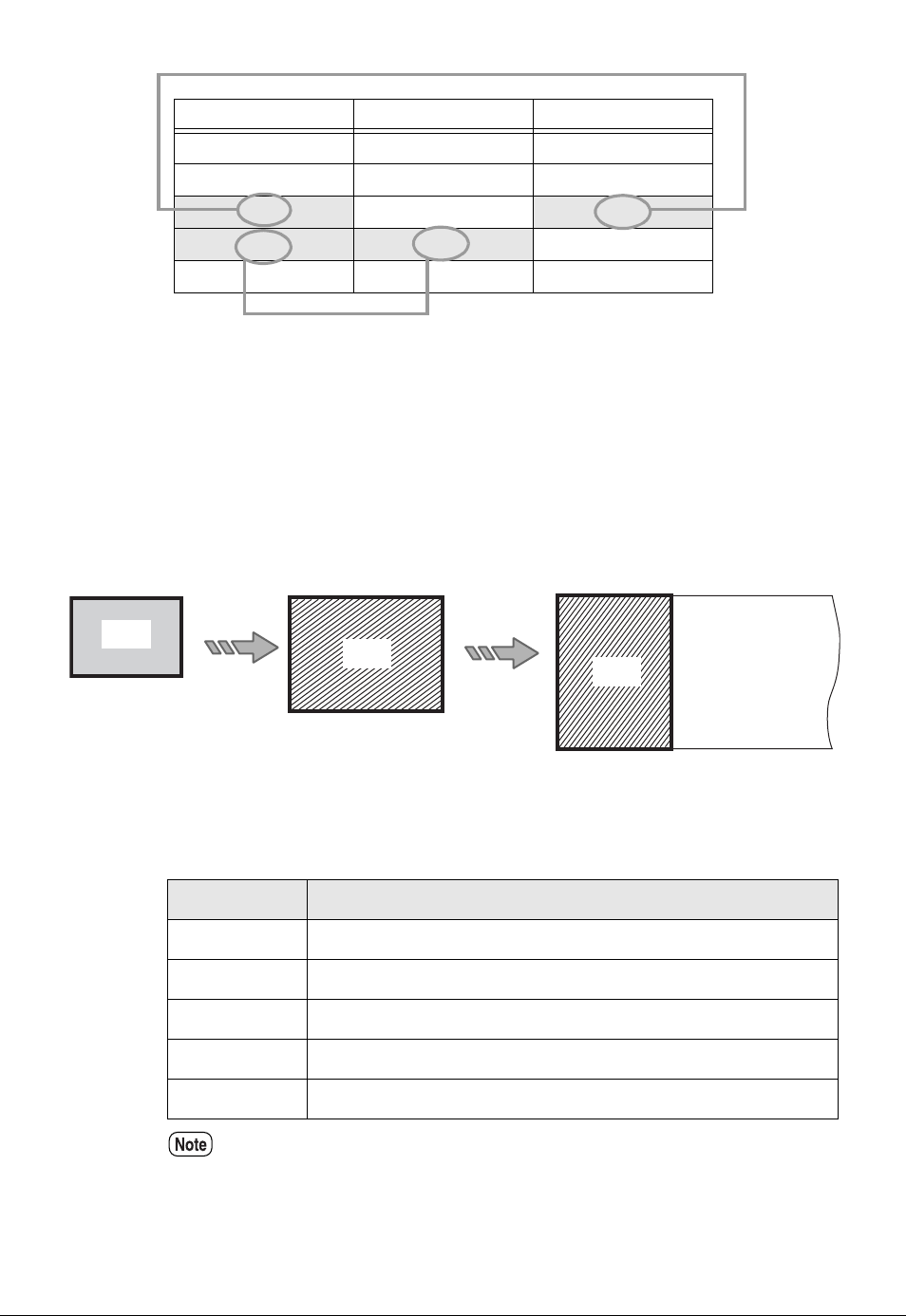

When the mapping table is set up as shown below, an image with an input size
of A3 will be printed as follows.
c Size mapping is applied to the image with an input size of A3, which is then
enlarged to an A2 output size (enlarged by 141.4%).
d Media mapping is applied as the output size is A2, and the image is printed
on the A1 roll media (rotated by 90 degrees and output).
Examples of the Media Sizes that can be output with Media Mapping
It is possible to print out the following paper sizes for the ISO A series.
Output Size Printable Paper Size
A0 A0 roll media
A1 A0 roll media (90-degree rotation), A1 roll media
A2 A1 roll media (90-degree rotation), A2 roll media
A3 A2 roll media (90-degree rotation), A3 roll media
A4 A3 roll media (90-degree rotation)
• It is possible to set paper sizes other than those listed above with media
mapping, but this may result in the images breaking up or the paper being too
large.
Input size Output size Media size
A0 A0 A0
A1 A1 A1
A2 A1 A1
A3 A2 A2
A4 A4 A4
d Media Mapping
c Size Mapping
A3
A2
A2
Input size
Enlarged
Output size
Rotated by
90 degrees
Media source
A1 roll media
